MC100EL04 Datasheet - Motorola

MC100EL04 2-input AND/NAND

PIN D0, D1 Q FUNCTION Data Inputs Data Outputs DC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND) *40°C 0°C 25°C 85°C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit IEE Power Supply Current 10EL 100EL 14 17 14 17 14 17 14 17 14 17 14 17 14 1.
MOTOROLA SEMICONDUCTOR TECHNICAL DATA 2ĆInput AND/NAND The MC10EL/100EL04 is a 2-input AND/NAND gate. The device is functionally equivalent to the E104 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E104 the EL04 is ideally suited for those applications which require the ultimate in AC performance. 240ps Propagation Delay High Bandwidth Output Transitions 75kΩ Internal Input Pulldown Re.

MC100EL04 Datasheet (71.21 KB)

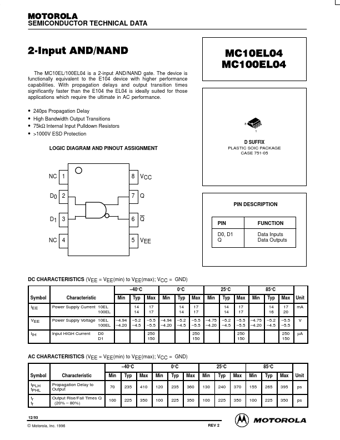

Preview of MC100EL04 PDF
MC100EL04 Datasheet Preview Page 2

Datasheet Details

Part number:

MC100EL04

Manufacturer:

Motorola

File Size:

71.21 KB

Description:

2-input and/nand.
