MC100EL11 - 1:2 Differential Fanout Buffer

MC100EL11 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 1:2 Differential Fanout Buffer The MC10EL/100EL11 is a differential 1:2 fanout buffer.The device is functional.
PIN D Q0, Q1 FUNCTION Data Inputs Data Outputs 12/93 © Motorola, Inc.

MC100EL11 Applications

* which require the ultimate in AC performance. The differential inputs of the EL11 employ clamping circuitry to maintain stability under open input conditions. If the inputs are left open (pulled to VEE) the Q outputs will go LOW.
* 265ps Propagation Delay
* 5ps Skew Between Outputs

📥 Download Datasheet

Preview of MC100EL11 PDF

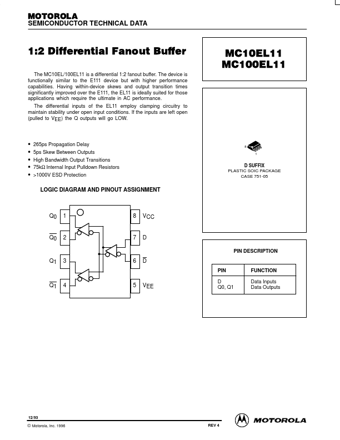

datasheet Preview Page 2 datasheet Preview Page 3
