MC100EL01

4-input OR/NOR

MC100EL01 General Description

PIN D0

*D3 Q FUNCTION Data Inputs Data Outputs DC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND)

*40°C 0°C 25°C 85°C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit IEE Power Supply Current 10EL 100EL 14 17 14 17 14 17 14 17 14 17 14 1.

MC100EL01 Datasheet (70.34 KB)

Preview of MC100EL01 PDF

Datasheet Details

Part number:

MC100EL01

Manufacturer:

Motorola

File Size:

70.34 KB

Description:

4-input or/nor.
MOTOROLA SEMICONDUCTOR TECHNICAL DATA 4ĆInput OR/NOR The MC10EL/100EL01 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 d.

📁 Related Datasheet

MC100EL01 - 5V ECL 4-Input OR/NOR (onsemi)
5 V ECL 4‐Input OR/NOR MC10EL01, MC100EL01 Description The MC10EL/100EL01 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 .

MC100EL04 - 2-input AND/NAND (Motorola)
MOTOROLA SEMICONDUCTOR TECHNICAL DATA 2ĆInput AND/NAND The MC10EL/100EL04 is a 2-input AND/NAND gate. The device is functionally equivalent to the E1.

MC100EL04 - 2-Input AND/NAND (ON Semiconductor)
MC10EL04, MC100EL04 5 V ECL 2‐Input AND/NAND Description The MC10EL/100EL04 is a 2-input AND/NAND gate. The device is functionally equivalent to the .

MC100EL05 - 2-input differential AND/NAND (Motorola)
MOTOROLA SEMICONDUCTOR TECHNICAL DATA 2ĆInput Differential AND/NAND The MC10EL/100EL05 is a 2-input differential AND/NAND gate. The device is functio.

MC100EL05 - 2-Input Differential AND/NAND (ON Semiconductor)
MC10EL05, MC100EL05 5 V ECL 2‐Input Differential AND/NAND Description The MC10EL/100EL05 is a 2-input differential AND/NAND gate. The device is funct.

MC100EL07 - 2-input XOR/XNOR (Motorola)
MOTOROLA SEMICONDUCTOR TECHNICAL DATA 2ĆInput XOR/XNOR The MC10EL/100EL07 is a 2-input XOR/XNOR gate. The device is functionally equivalent to the E10.

MC100EL07 - 2-Input XOR/XNOR (ON Semiconductor)
MC10EL07, MC100EL07 5.0 V ECL 2‐Input XOR/XNOR Description The MC10EL/100EL07 is a 2-input XOR/XNOR gate. The device is functionally equivalent to th.

MC100EL11 - 1:2 Differential Fanout Buffer (Motorola)
MOTOROLA SEMICONDUCTOR TECHNICAL DATA 1:2 Differential Fanout Buffer The MC10EL/100EL11 is a differential 1:2 fanout buffer. The device is functional.

TAGS

MC100EL01 4-input NOR Motorola

Image Gallery

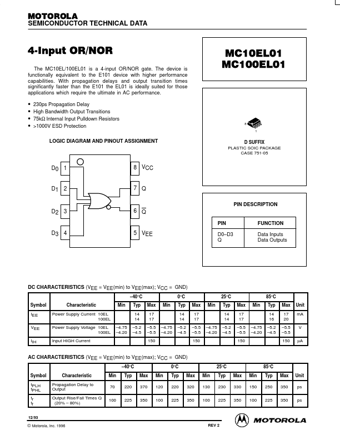

MC100EL01 Datasheet Preview Page 2
