MC100EL15, 1:4 Clock Distribution Chip

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 1:4 Clock Distribution Chip The MC10EL/100EL15 is a low skew 1:4 clock distribution chip designed explicitly fo.

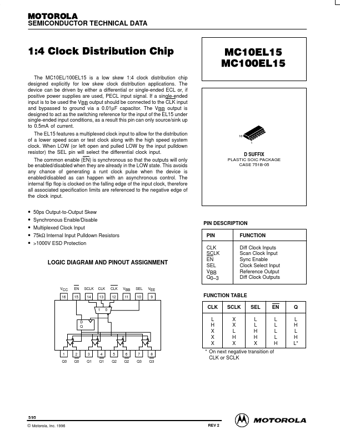

datasheet Preview Page 1 from Datasheet4u.com

MC100EL15-Motorola.pdf

MC100EL15 Datasheet Preview — Preview of MC100EL15 PDF

Datasheet Details

Part number:

MC100EL15

Manufacturer:

Motorola

File Size:

72.17 KB

Description:

1:4 Clock Distribution Chip

Features

* a multiplexed clock input to allow for the distribution of a lower speed scan or test clock along with the high speed system clock. When LOW (or left open and pulled LOW by the input pulldown resistor) the SEL pin will select the differential clock input. The common enable (EN) is synchronous so tha

Applications

* The device can be driven by either a differential or single-ended ECL or, if positive power supplies are used, PECL input signal. If a single-ended input is to be used the VBB output should be connected to the CLK input and bypassed to ground via a 0.01µF capacitor. The VBB output is designed to ac
