MC100EL07 Datasheet - Motorola

MC100EL07 2-input XOR/XNOR

PIN D0, D1 Q FUNCTION Data Inputs Data Outputs DC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND) *40°C 0°C 25°C 85°C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Typ Max Unit IEE Power Supply Current 10EL 100EL 14 17 14 17 14 17 14 17 14 17 14 17 14 1.
MOTOROLA SEMICONDUCTOR TECHNICAL DATA 2ĆInput XOR/XNOR The MC10EL/100EL07 is a 2-input XOR/XNOR gate. The device is functionally equivalent to the E107 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E107 the EL07 is ideally suited for those applications which require the ultimate in AC performance. 260ps Propagation Delay High Bandwidth Output Transitions 75kΩ Internal Input Pulldown Res.

MC100EL07 Datasheet (71.33 KB)

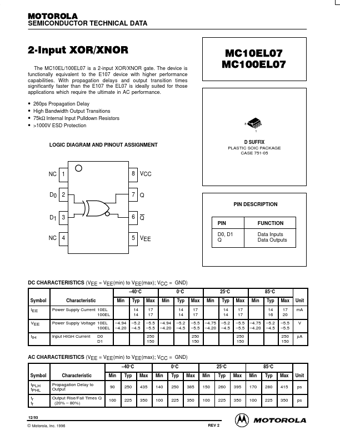

Preview of MC100EL07 PDF
MC100EL07 Datasheet Preview Page 2

Datasheet Details

Part number:

MC100EL07

Manufacturer:

Motorola

File Size:

71.33 KB

Description:

2-input xor/xnor.
