MC100EL12 Low Impedance Drive

PIN D0, D1 Qa, Qb FUNCTION Data Inputs Data Outputs DC CHARACTERISTICS (VEE = VEE(min) to VEE(max); VCC = GND) *40°C 0°C 25°C 85°C Symbol Characteristic Min Typ Max Min Typ Max Min Typ Max Min Ty.

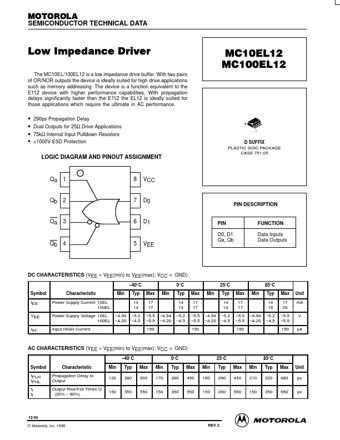

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Low Impedance Driver The MC10EL/100EL12 is a low impedance drive buffer. With two pairs of OR/NOR outputs the device is ideally suited for high drive applications such as memory addressing. The device is a function equivalent to the E112 device with higher performance capabilities. With propagation delays significantly faster than the E112 the EL12 is ideally suited for those applications which require the ultimate in AC performance. 290ps Propag.

MC100EL12D_MotorolaInc.pdf

MC100EL12 Datasheet Preview — This datasheet PDF includes multiple part numbers: MC100EL12, MC100EL12D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MC100EL12, MC100EL12D

Manufacturer:

Motorola

File Size:

73.98 KB

Description:

Low impedance drive.

Note:

This datasheet PDF includes multiple part numbers: MC100EL12, MC100EL12D.
Please refer to the document for exact specifications by model.
