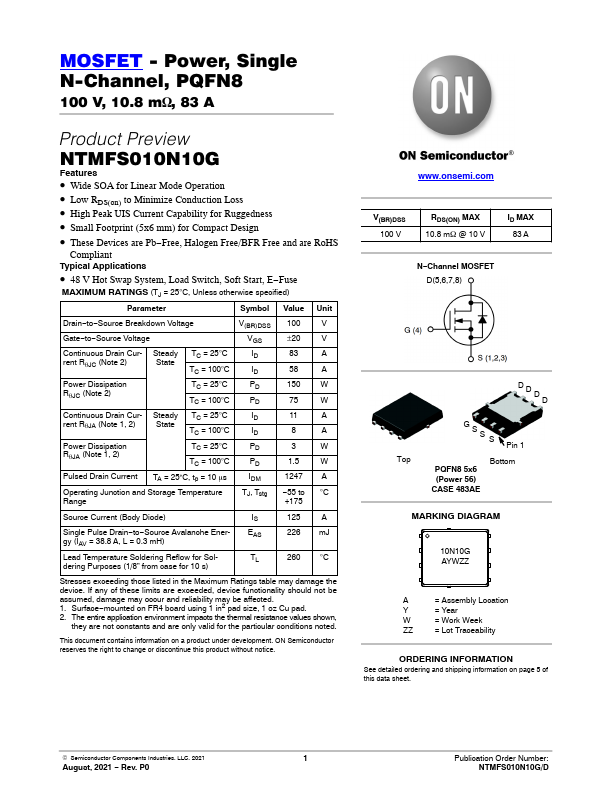

NTMFS010N10G N-Channel Power MOSFET

MOSFET - Power, Single N-Channel, PQFN8 100 V, 10.8 mW, 83 A Product Preview NTMFS010N10G .

NTMFS010N10G-onsemi.pdf

NTMFS010N10G Datasheet Preview — Preview of NTMFS010N10G PDF

Datasheet Details

Part number:

NTMFS010N10G

Manufacturer:

onsemi

File Size:

261.88 KB

Description:

N-Channel Power MOSFET

Features

* Wide SOA for Linear Mode Operation
* Low RDS(on) to Minimize Conduction Loss
* High Peak UIS Current Capability for Ruggedness
* Small Footprint (5x6 mm) for Compact Design
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant Ty

Applications

* 48 V Hot Swap System, Load Switch, Soft Start, E
* Fuse MAXIMUM RATINGS (TJ = 25°C, Unless otherwise specified) Parameter Symbol Value Unit Drain
* to
* Source Breakdown Voltage V(BR)DSS 100 V Gate
* to
* Source Voltage VGS ±20 V Continuous Drain Cu
