NTMFS2D1N08X N-Channel Power MOSFET

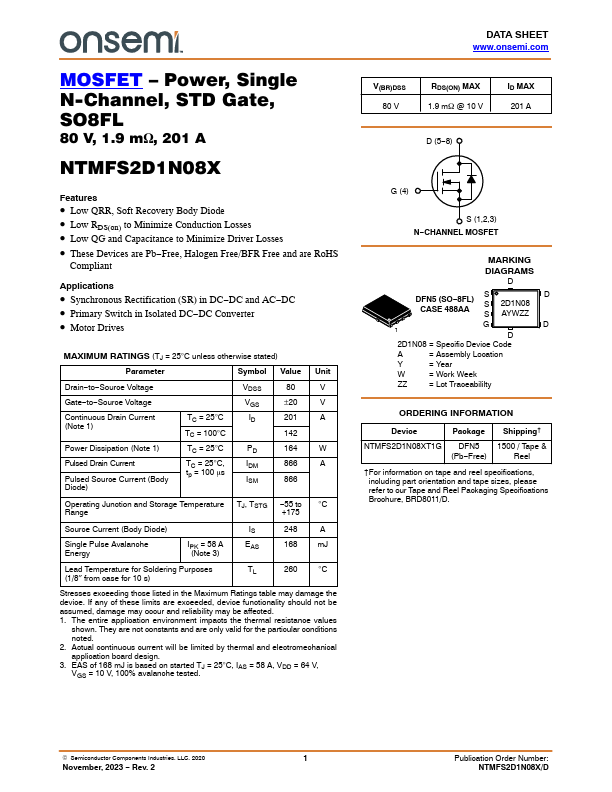

📥 Download Datasheet  Datasheet Preview Page 1

Description

MOSFET * Power, Single N-Channel, STD Gate, SO8FL 80 V, 1.9 mW, 201 A NTMFS2D1N08X .

📥 Download Datasheet

Preview of NTMFS2D1N08X PDF

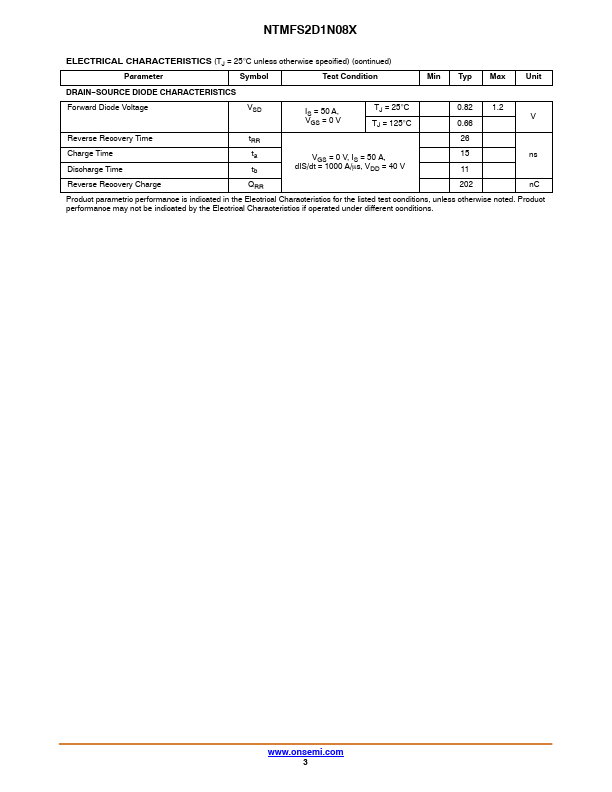

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NTMFS2D1N08X
Manufacturer
onsemi
File Size
218.69 KB
Datasheet
NTMFS2D1N08X-onsemi.pdf
Description
N-Channel Power MOSFET

Features

* Low QRR, Soft Recovery Body Diode
* Low RDS(on) to Minimize Conduction Losses
* Low QG and Capacitance to Minimize Driver Losses
* These Devices are Pb

Applications

* Synchronous Rectification (SR) in DC
* DC and AC
* DC
* Primary Switch in Isolated DC
* DC Converter
* Motor Drives MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Unit Drain
* to
* Source Voltage VDSS 80 V Ga
