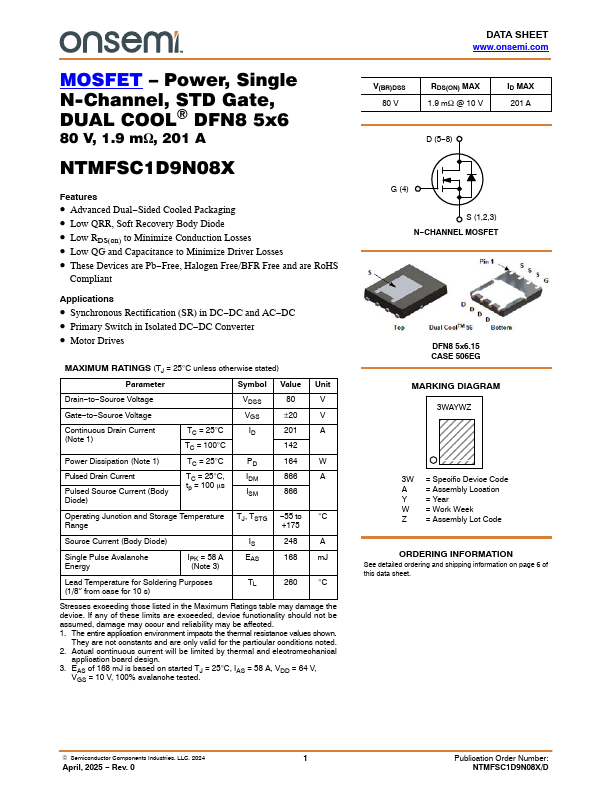

NTMFSC1D9N08X 80V 201A N-Channel Power MOSFET

MOSFET * Power, Single N-Channel, STD Gate, DUAL COOL) DFN8 5x6 80 V, 1.9 mW, 201 A NTMFSC1D9N08X .

NTMFSC1D9N08X-onsemi.pdf

NTMFSC1D9N08X Datasheet Preview — Preview of NTMFSC1D9N08X PDF

Datasheet Details

Part number:

NTMFSC1D9N08X

Manufacturer:

onsemi

File Size:

418.19 KB

Description:

80V 201A N-Channel Power MOSFET

Features

* Advanced Dual
* Sided Cooled Packaging
* Low QRR, Soft Recovery Body Diode
* Low RDS(on) to Minimize Conduction Losses
* Low QG and Capacitance to Minimize Driver Losses
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

* Synchronous Rectification (SR) in DC
* DC and AC
* DC
* Primary Switch in Isolated DC
* DC Converter
* Motor Drives MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Unit Drain
* to
* Source Voltage VDSS 80 V Ga
