SZ1SMB5939BT3G-VF01, SZ1SMB5914BT3G-VF01 3 Watt Plastic Surface Mount Zener Voltage Regulators

onsemi

Description

DATA SHEET www.onsemi.com 3 Watt Plastic Surface Mount Zener Voltage Regulators SZ1SMB59xxT3G-VF01 Series This complete new line of 3 W Zener diodes.

📥 Download Datasheet

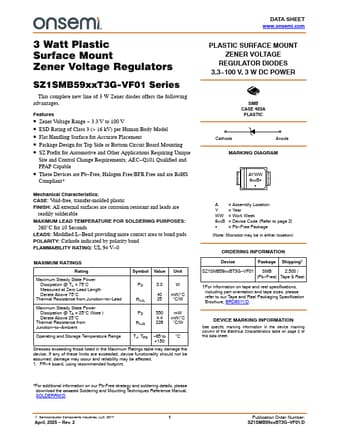

SZ1SMB5939BT3G-VF01 Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1SMB5939BT3G-VF01, SZ1SMB5914BT3G-VF01. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SZ1SMB5939BT3G-VF01, SZ1SMB5914BT3G-VF01
Manufacturer: onsemi
File Size: 208.26 KB
Datasheet: SZ1SMB5914BT3G-VF01-onsemi.pdf
Description: 3 Watt Plastic Surface Mount Zener Voltage Regulators
Note: This datasheet PDF includes multiple part numbers: SZ1SMB5939BT3G-VF01, SZ1SMB5914BT3G-VF01.
Please refer to the document for exact specifications by model.

Features

* Zener Voltage Range
* 3.3 V to 100 V
* ESD Rating of Class 3 (> 16 kV) per Human Body Model
* Flat Handling Surface for Accurate Placement
* Package Design for Top Side or Bottom Circuit Board Mounting

Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant
* Mechanical Characteristics: CASE: Void-free, transfer-molded plastic FINISH: All external surfaces are cor
