UJ3D1210TS - 1200V SiC Diode

onsemi

📥 Download Datasheet

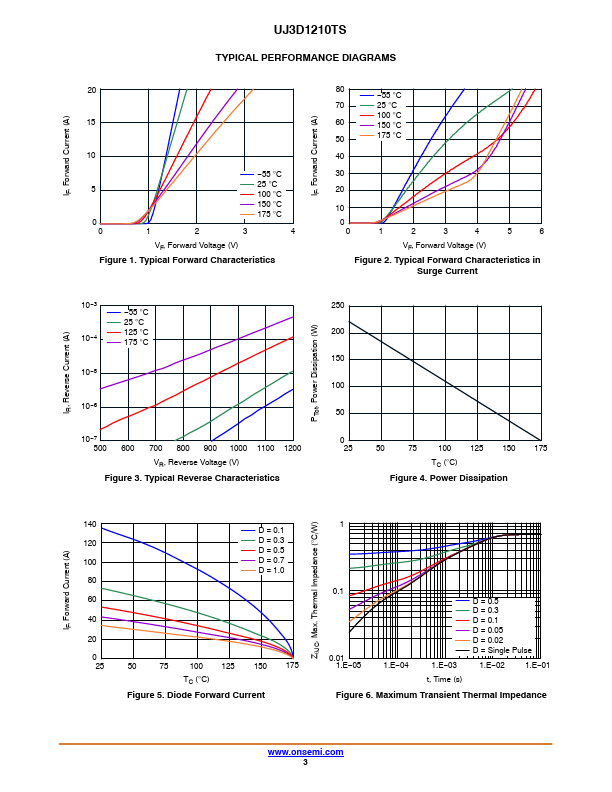

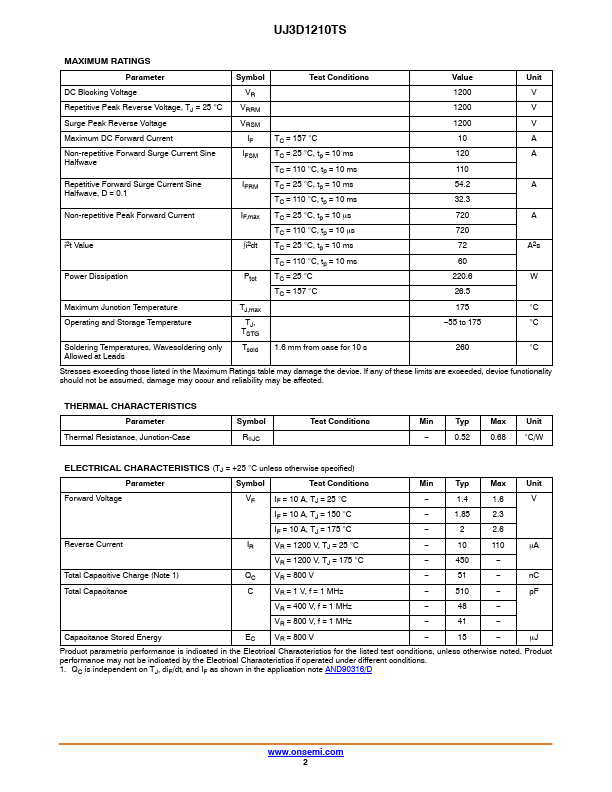

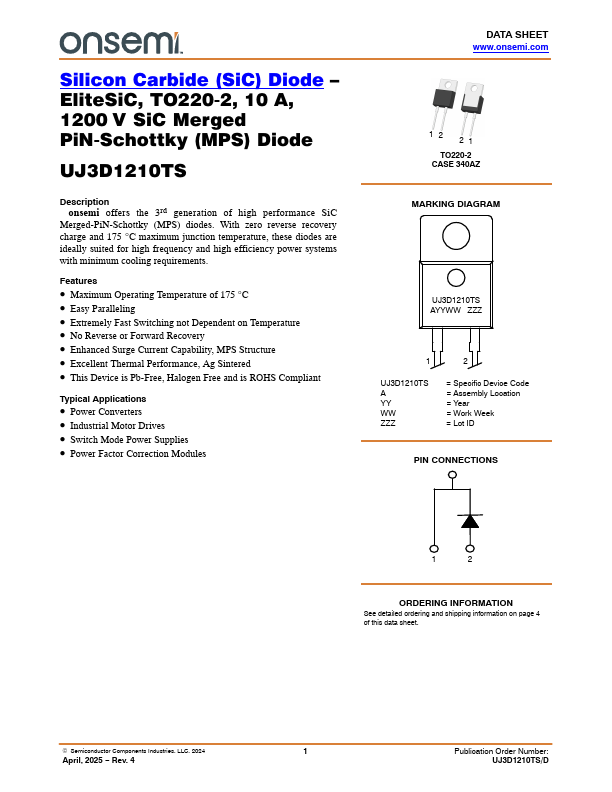

UJ3D1210TS Datasheet Preview — Preview of UJ3D1210TS PDF

Datasheet Details

Part number: UJ3D1210TS
Manufacturer: onsemi
File Size: 386.97 KB
Datasheet: UJ3D1210TS-onsemi.pdf
Description: 1200V SiC Diode

UJ3D1210TS Product details

Description

onsemi offers the 3rd generation of high performance SiC Merged-PiN-Schottky (MPS) diodes.With zero reverse recovery charge and 175 °C maximum junction temperature, these diodes are ideally suited for high frequency and high efficiency power systems with minimum cooling requirements.

Features

Maximum Operating Temperature of 175 °C.
Easy Paralleling.
Extremely Fast Switching not Dependent on Temperature.
No Reverse or Forward Recovery.
Enhanced Surge Current Capability, MPS Structure.
Excellent Thermal Performance, Ag Sintered.
This Device is Pb-Free, Halogen Free and is ROHS Compliant Typical.
