UJ3D06520KSD - 650V SiC Diode

onsemi

📥 Download Datasheet

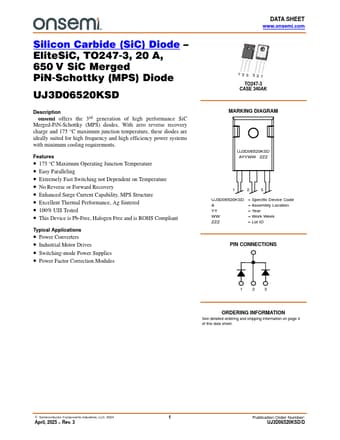

UJ3D06520KSD Datasheet Preview — Preview of UJ3D06520KSD PDF

Datasheet Details

Part number: UJ3D06520KSD
Manufacturer: onsemi
File Size: 305.90 KB
Datasheet: UJ3D06520KSD-onsemi.pdf
Description: 650V SiC Diode

UJ3D06520KSD Product details

Description

onsemi offers the 3rd generation of high performance SiC Merged-PiN-Schottky (MPS) diodes.With zero reverse recovery charge and 175 °C maximum junction temperature, these diodes are ideally suited for high frequency and high efficiency power systems with minimum cooling requirements.

Features

175 °C Maximum Operating Junction Temperature.
Easy Paralleling.
Extremely Fast Switching not Dependent on Temperature.
No Reverse or Forward Recovery.
Enhanced Surge Current Capability, MPS Structure.
Excellent Thermal Performance, Ag Sintered.
100% UIS Tested.
This Device is Pb-Free, Halogen Free and is ROHS Compliant Typical.
