UJ3D06560KSD

650V 60A SiC Merged PiN-Schottky Diode

UnitedSiC

UJ3D06560KSD Features

* 175°C maximum operating junction temperature

* Easy paralleling

* Extremely fast switching not dependent on temperature

* No reverse or forward recovery

* Enhanced surge current capability, MPS structure

* Excellent thermal performance, Ag si

UJ3D06560KSD General Description

United Silicon Carbide, Inc. offers the 3rd generation of high performance SiC Merged-PiN-Schottky (MPS) diodes. With zero reverse recovery charge and 175°C maximum junction temperature, these diodes are ideally suited for high frequency and high efficiency power systems with minimum cooling require.

UJ3D06560KSD Datasheet (459.69 KB)

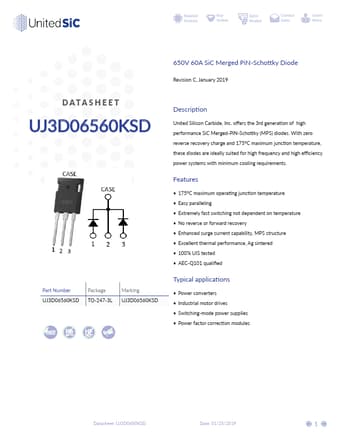

UJ3D06560KSD Datasheet Preview — Preview of UJ3D06560KSD PDF

Datasheet Details

Part number:

UJ3D06560KSD

Manufacturer:

UnitedSiC

File Size:

459.69 KB

Description:

650v 60a sic merged pin-schottky diode.
Related Devices Buy Online Spice Models Contact Sales Learn More 650V 60A SiC Merged PiN-Schottky Diode Revision C, January 2019 D ATA S H E E T.
