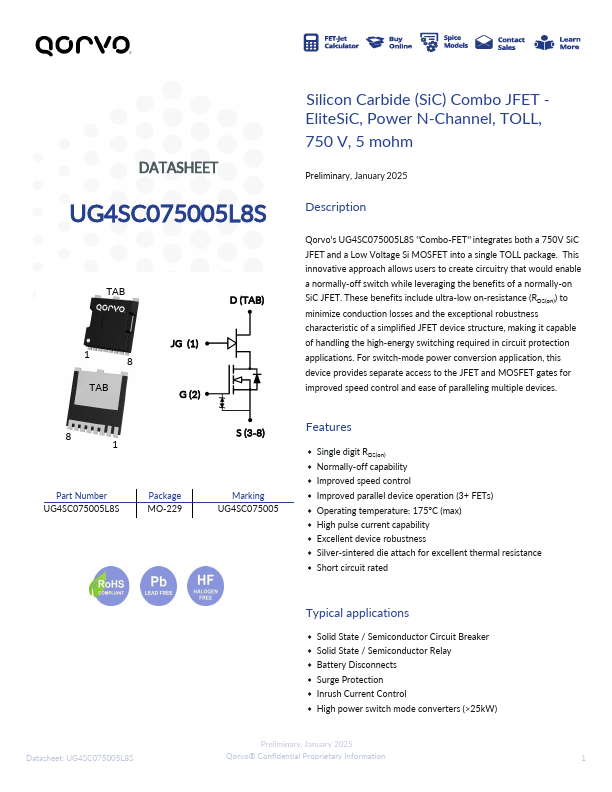

UG4SC075005L8S SiC Combo JFET

Qorvo's UG4SC075005L8S "Combo-FET" integrates both a 750V SiC JFET and a Low Voltage Si MOSFET into a single TOLL package. This innovative approach allows users to create circuitry that would enable a normally-off switch while leveraging the benefits of a normally-on SiC JFET. These benefits include.

UG4SC075005L8S Features

* w Single digit RDS(on) w Normally-off capability w Improved speed control w Improved parallel device operation (3+ FETs) w Operating temperature: 175oC (max) w High pulse current capability w Excellent device robustness w Silver-sintered die attach for excellent thermal resistance w Short circuit ra

UG4SC075005L8S Datasheet (922.47 KB)
