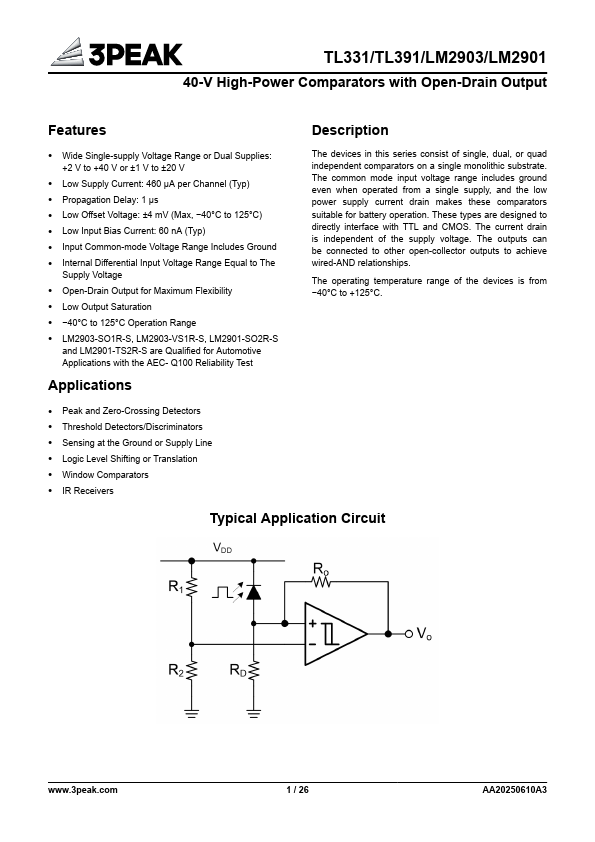

LM2901
Features
Description
- Wide Single-supply Voltage Range or Dual Supplies:
+2 V to +40 V or ±1 V to ±20 V
- Low Supply Current: 460 μA per Channel (Typ)
- Propagation Delay: 1 μs
- Low Offset Voltage: ±4 m V (Max,
- 40°C to 125°C)
- Low Input Bias Current: 60 n A (Typ)
- Input mon-mode Voltage Range Includes Ground
- Internal Differential Input Voltage Range Equal to The
Supply Voltage
- Open-Drain Output for Maximum Flexibility
- Low Output Saturation
- - 40°C to 125°C Operation Range
- LM2903-SO1R-S, LM2903-VS1R-S, LM2901-SO2R-S and LM2901-TS2R-S are Qualified for Automotive Applications with the AEC- Q100 Reliability Test
Applications
The devices in this series consist of single, dual, or quad independent parators on a single monolithic substrate. The mon mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these parators suitable for battery operation. These types are designed to directly interface with TTL...
