LM2903 Datasheet | 3PEAK

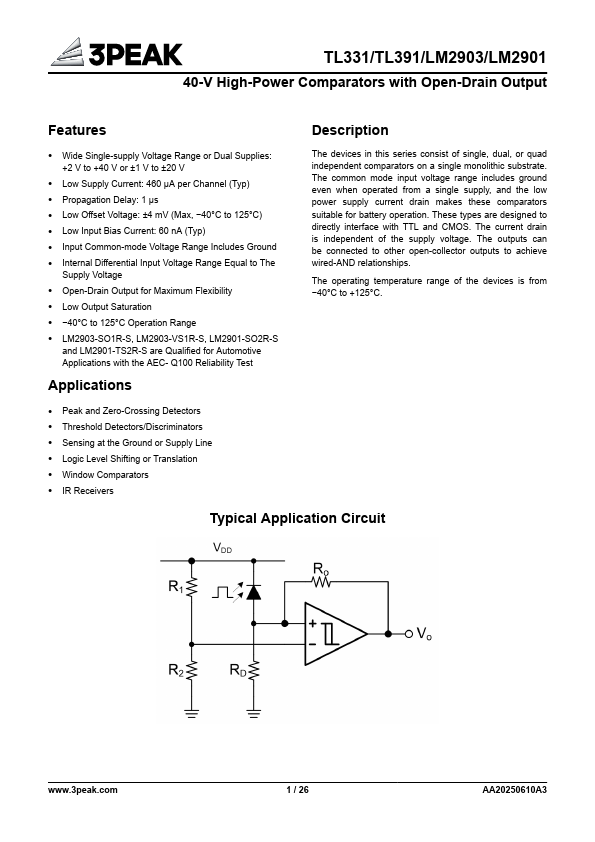

Features Description - Wide Single-supply Voltage Range or Dual Supplies: +2 V to +40 V or ±1 V to ±20 V - Low Supply Current: 460 μA per Channel (Typ) - Propagation Delay: 1 μs - Low Offset Voltage: ±4 m V (Max, - 40°C to 125°C) - Low Input Bias Current: 60 n A (Typ) - Input mon-mode Voltage Range Includes Ground - Internal Differential Input Voltage Range Equal to The Supply Voltage - Open-Drain Output for Maximum Flexibility - Low Output Saturation - - 40°C to 125°C Operation Range - LM2903-SO1R-S, LM2903-VS1R-S, LM2901-SO2R-S and LM2901-TS2R-S are Qualified for Automotive Applications with the AEC- Q100 Reliability Test Applications The devices in this series consist of single, dual, or quad independent parators on a single monolithic substrate. The mon mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these parators suitable for battery operation. These types are designed to directly interface with TTL...
