LM2903D - 36V Dual Comparators

Product Overview

3PEAK

Datasheet Details

Part number	LM2903D
Manufacturer	3PEAK
File Size	927.87 KB
Description	36V Dual Comparators
Datasheet	LM2903D Datasheet

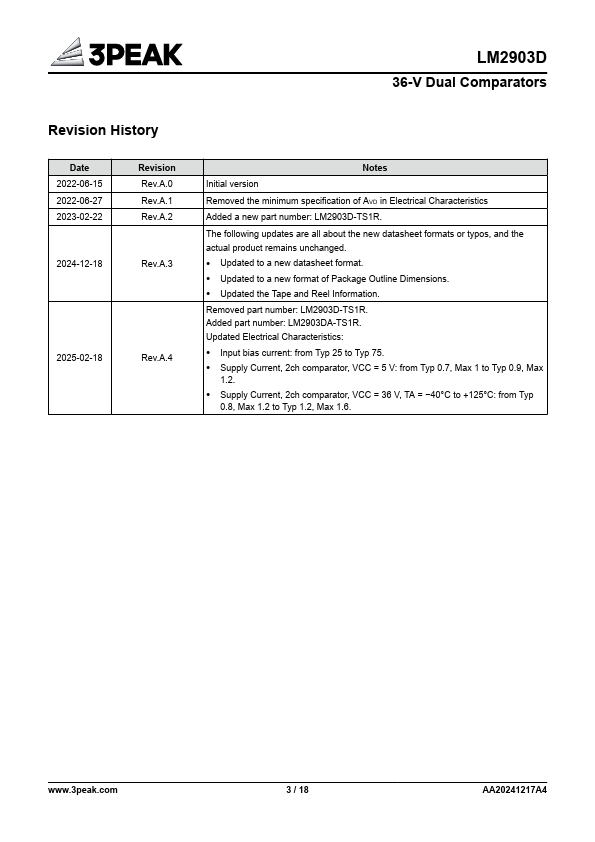

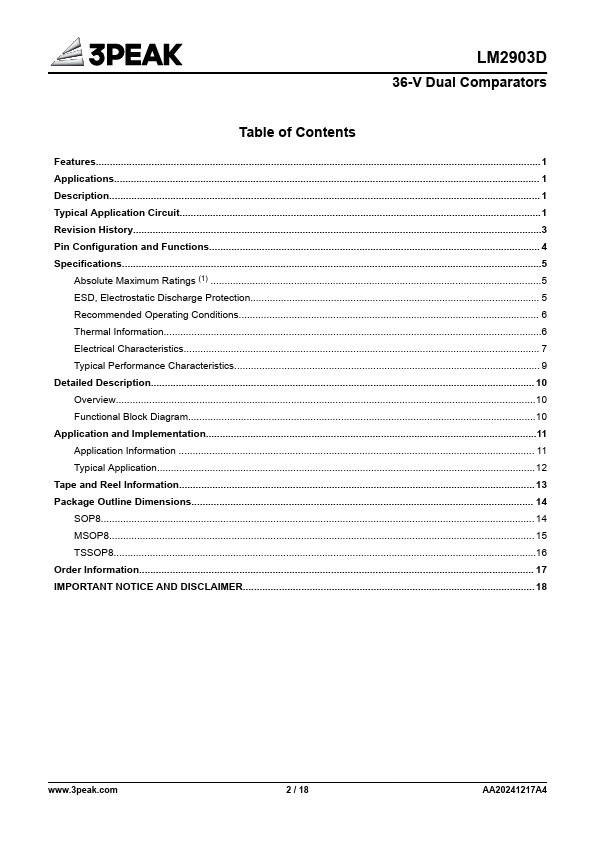

Additional preview pages of the LM2903D datasheet.

Product details

Description

The devices in this series consist of dual comparators on a single monolithic substrate.

The common-mode input voltage range includes ground even when operated from a single supply, and the low power supply current drain makes these comparators suitable for battery operation.

Features

Wide Single-supply Voltage Range or Dual Supplies: +3 V to +36 V or ±1.5 V to ±18 V.
Low Supply Current: 1mA.
Low Input Bias Current: 25 nA Typ.
Low Offset Voltage: ±7 mV Max.
Input Common-mode Voltage Range Includes Ground.
Internal Differential Input Voltage Range Equal to The Supply Voltage.
40°C to 125°C Operation Range.
