TPAFE5160 - Simultaneous Sampling ADC

Description

TPAFE5160 is a 16bit, 8-channel simultaneous sampling, successive approximation (SAR) ADC.

Each channel has a complete analog front end, as well as an ADC operating at 350 kSPS per channel.

Features

  • 8 simultaneously sampled inputs.
  • Single 5V analog supply and 1.71 to 5V VDRIVE.
  • 16bit ADC with 350 kSPS on all channels.
  • Bipolar inputs ranges: ±10V, ±5V.
  • Analog input clamp protection.
  • 1 MΩ analog input impedance.
  • On chip reference and buffer.
  • On chip oversampling digital filter.
  • SPI compatible interface.
  • Temperature range: -40℃ to 125℃.
  • Package: LQFP10X10-64.

📥 Download Datasheet

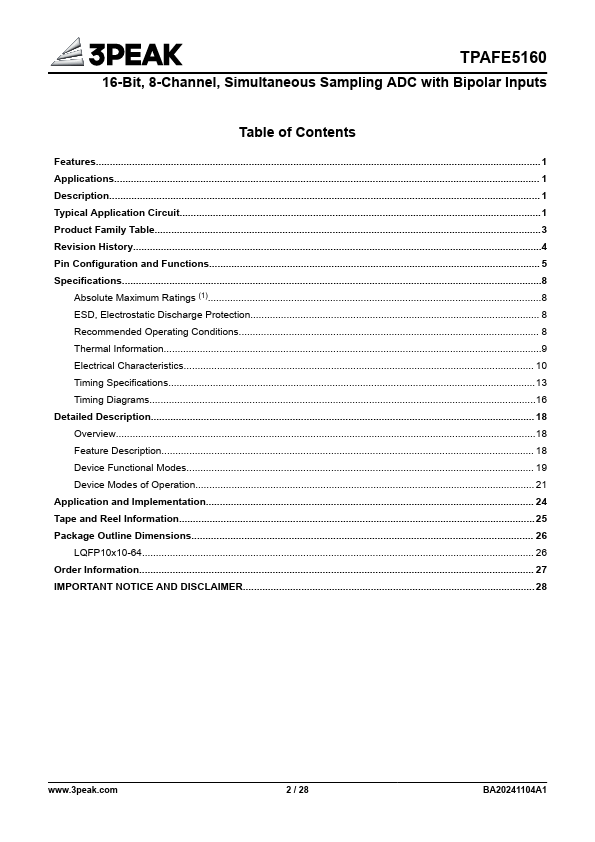

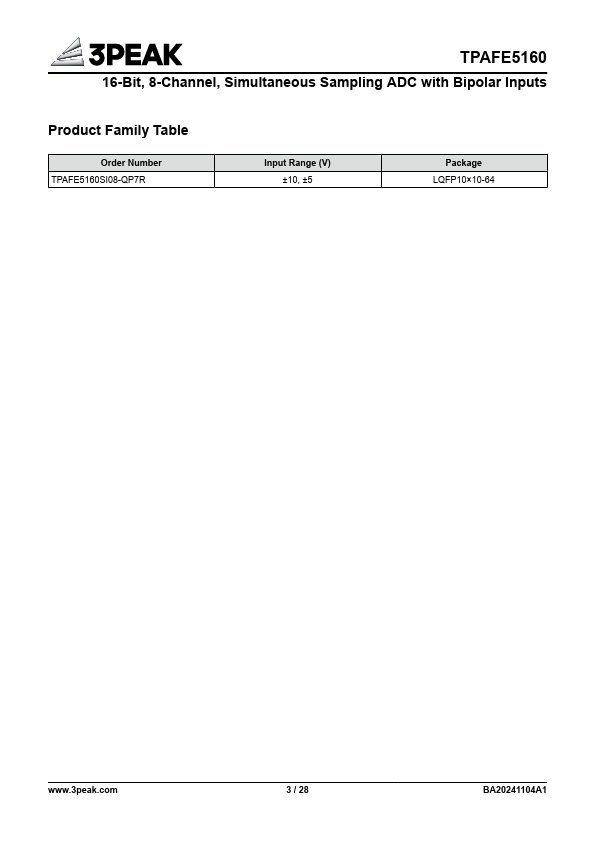

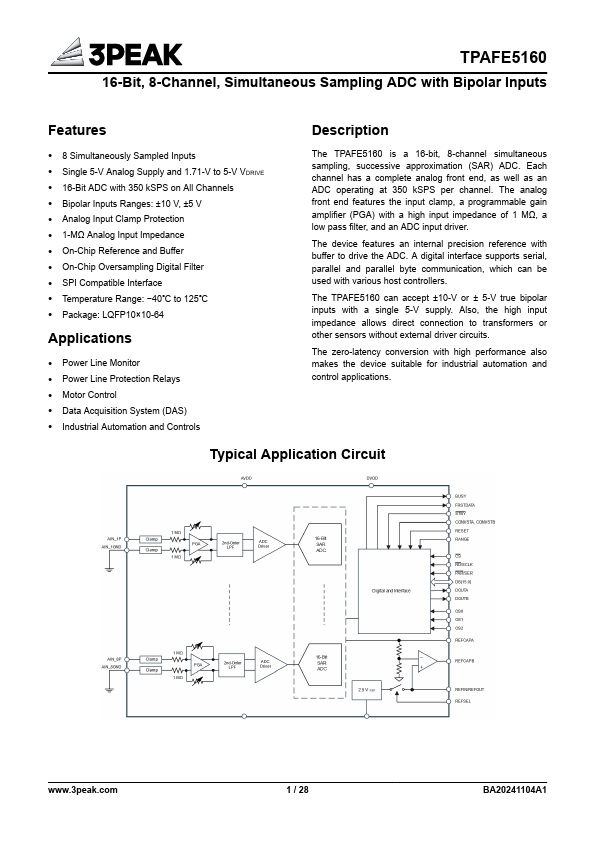

Datasheet preview – TPAFE5160

Datasheet Details

Part number TPAFE5160
Manufacturer 3PEAK
File Size 1.16 MB
Description Simultaneous Sampling ADC
Datasheet download datasheet TPAFE5160 Datasheet
