TPAFE5162 - 16bit 8-Channel Simultaneous Sampling ADC

Description

TPAFE5162 is a 16bit, 8-channel simultaneous sampling, successive approximation (SAR) ADC.

Each channel has a complete analog front end, as well as an ADC operating at 200 kSPS per channel.

Features

  • 8 simultaneously sampled inputs.
  • Single 5V analog supply and 1.71 to 5V VDRIVE.
  • 16bit ADC with 200 kSPS on all channels.
  • Bipolar inputs ranges: ±10V, ±5V.
  • Analog input clamp protection.
  • 1 MΩ analog input impedance.
  • On chip reference and buffer.
  • On chip oversampling digital filter.
  • SPI compatible interface.
  • Temperature range: -40℃ to 125℃.
  • Package: LQFP10X10-64.

📥 Download Datasheet

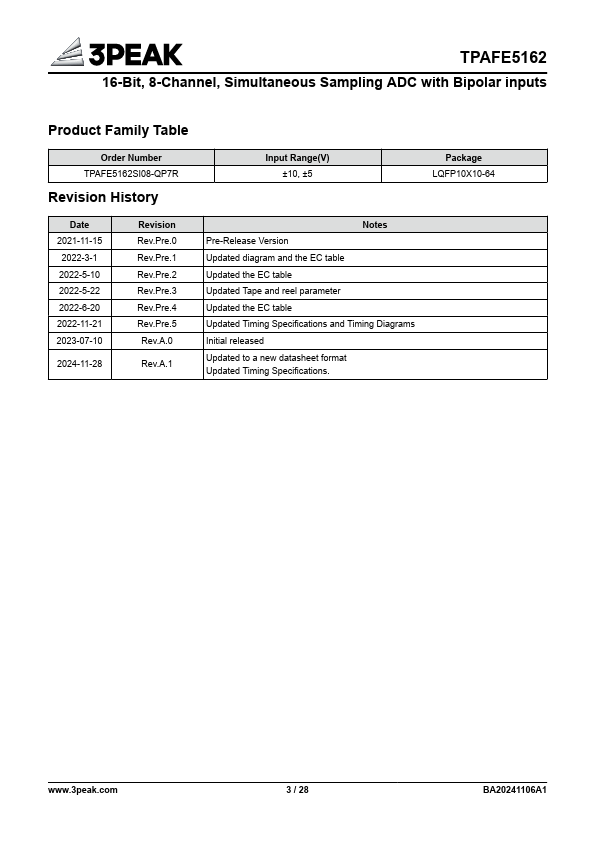

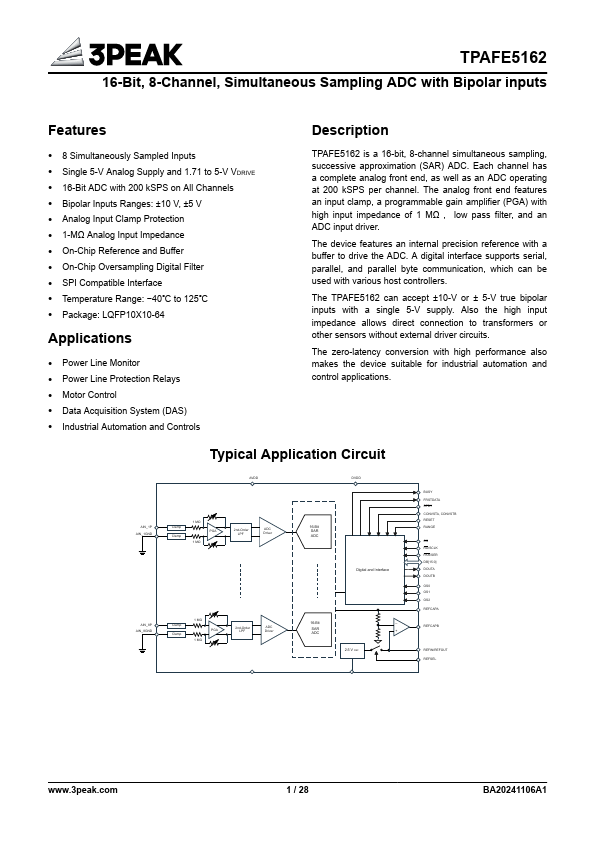

Datasheet preview – TPAFE5162

Datasheet Details

Part number TPAFE5162
Manufacturer 3PEAK
File Size 970.77 KB
Description 16bit 8-Channel Simultaneous Sampling ADC
Datasheet download datasheet TPAFE5162 Datasheet

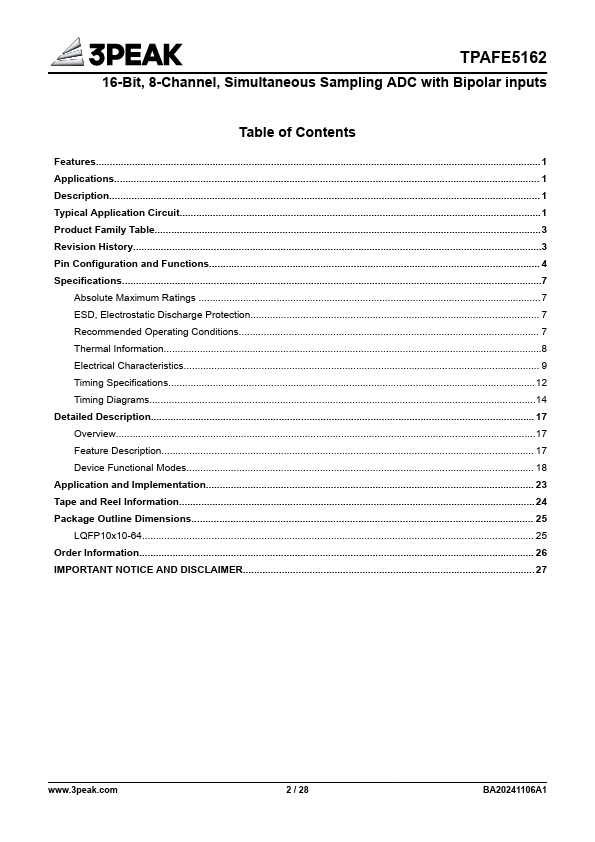

Additional preview pages of the TPAFE5162 datasheet.
