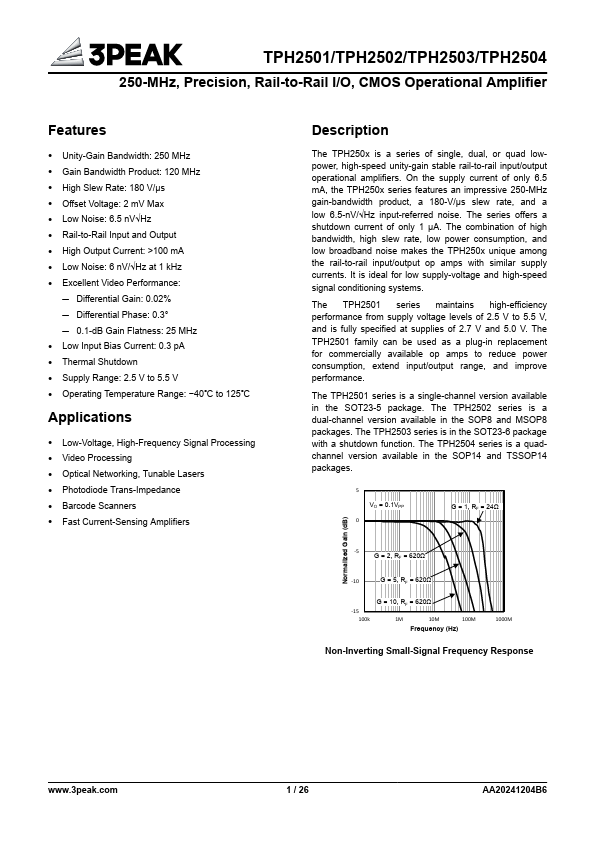

Features - Unity-Gain Bandwidth: 250 MHz - Gain Bandwidth Product: 120 MHz - High Slew Rate: 180 V/μs - Offset Voltage: 2 m V Max - Low Noise: 6.5 n V√Hz - Rail-to-Rail Input and Output - High Output Current: >100 m A - Low Noise: 6 n V/√Hz at 1 k Hz - Excellent Video Performance: - Differential Gain: 0.02% - Differential Phase: 0.3° - 0.1-d B Gain Flatness: 25 MHz - Low Input Bias Current: 0.3 p A - Thermal Shutdown - Supply Range: 2.5 V to 5.5 V - Operating Temperature Range: - 40℃ to 125℃ Applications - Low-Voltage, High-Frequency Signal Processing - Video Processing - Optical Networking, Tunable Lasers - Photodiode Trans-Impedance - Barcode Scanners - Fast Current-Sensing Amplifiers Description The TPH250x is a series of single, dual, or quad lowpower, high-speed unity-gain stable rail-to-rail input/output operational amplifiers. On the supply current of only 6.5 m A, the TPH250x series features an impressive 250-MHz gain-bandwidth product, a 180-V/μs slew rate, and a low 6.5-n V/√Hz input-referred noise. The series offers a shutdown current of only 1 μA. The bination of high bandwidth, high slew rate, low power consumption, and low broadband noise makes the TPH250x unique among the rail-to-rail input/output op amps with similar supply currents. It is ideal for low supply-voltage and high-speed signal conditioning systems. The TPH2501 series maintains high-efficiency performance from supply voltage levels of 2.5 V to 5.5 V, and is fully specified at supplies of 2.7 V and 5.0 V. The TPH2501 family can be used as a plug-in replacement for mercially available op amps to reduce power consumption, extend input/output range, and improve performance. The TPH2501 series is a single-channel version available in the SOT23-5 package. The TPH2502 series is a dual-channel version available in the SOP8 and MSOP8 packages. The TPH2503 series is in the SOT23-6 package with a shutdown function. The TPH2504 series is a quadchannel version available in the SOP14 and TSSOP14 packages. 5...
