TPH2504 - CMOS Op-amps

This page provides the datasheet information for the TPH2504, a member of the TPH2501 CMOS Op-amps family.

Description

Unity-Gain Bandwidth: 250MHz Gain Bandwidth Product: 120MHz High Slew Rate: 180V/μs

Offset Voltage: 2mV Max.

Low Noise: 6.5nV/√Hz Rail-to-Rail Input and Output High Output Current: > 100mA Excellent Video Performance: Diff Gain: 0.02%, Diff Phase: 0.3

Features

TPH2501/TPH2502/TPH2503 /TPH2504 250MHz, Precision, Rail-to-Rail I/O, CMOS Op-amps.

3PEAK

📥 Download Datasheet

Datasheet Details

Part number	TPH2504
Manufacturer	3PEAK
File Size	1.30 MB
Description	CMOS Op-amps
Datasheet	TPH2504 Datasheet

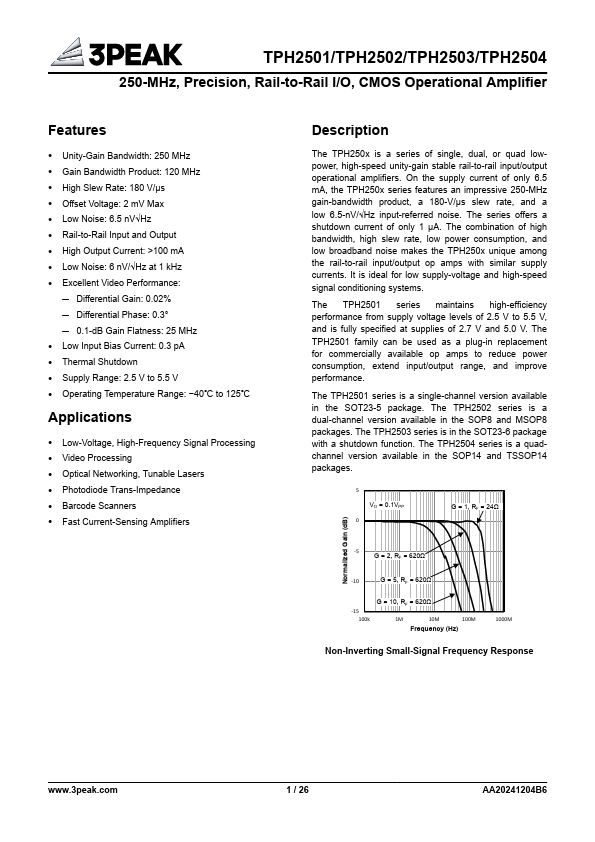

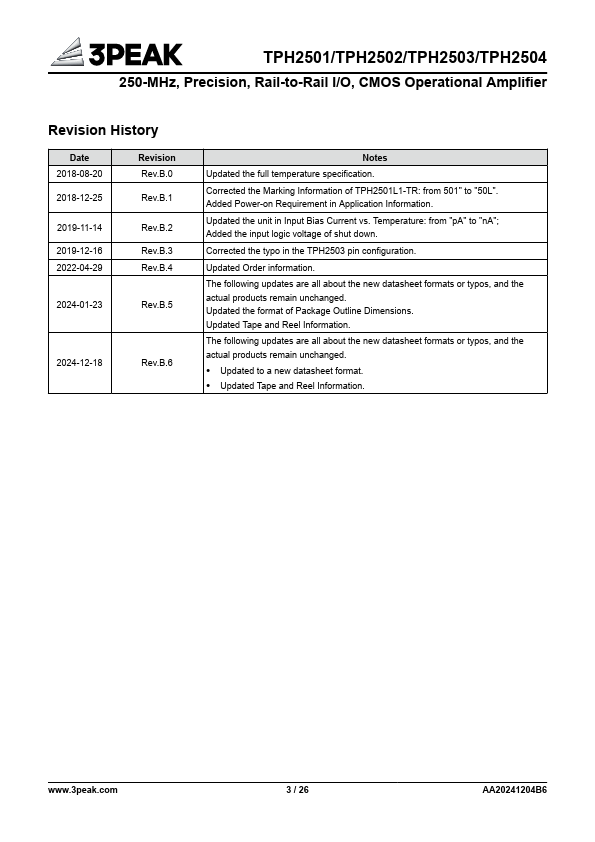

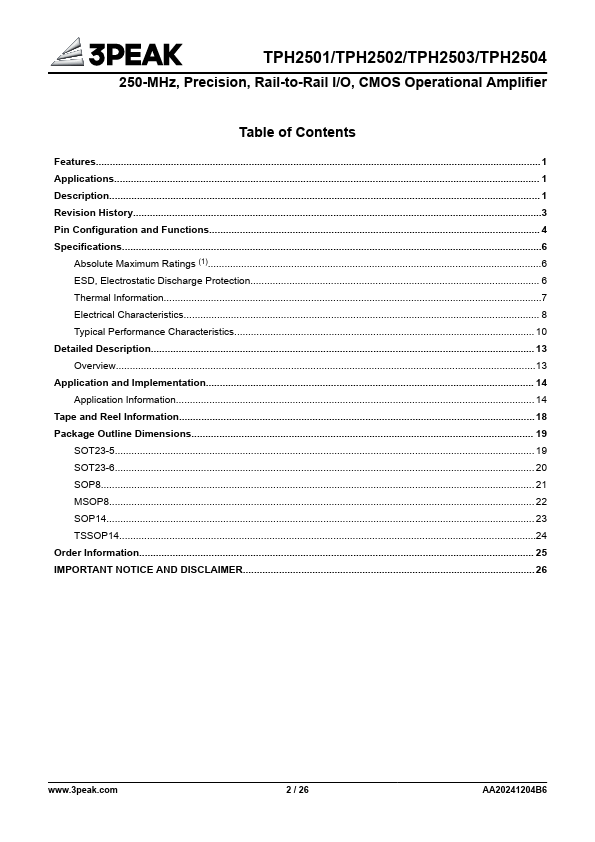

Additional preview pages of the TPH2504 datasheet.

📁 Similar Datasheet

TPH250A - Current Transducers (Topstek)
TPH25A - Current Transducers (Topstek)
TPH25A-LTC - Current Transducers (Topstek)
TPH200A - Current Transducers (Topstek)
TPH2010FNH - Silicon N-channel MOSFET (Toshiba)
TPH20A-LTC - Current Transducers (Topstek)
TPH2405D - 2W 3KVDC Isolated Single & Dual Output DC/DC Converters (TOPPOWER)
TPH2405DA - 2W 3KVDC Isolated Single & Dual Output DC/DC Converters (TOPPOWER)
TPH2405S - 2W 3KVDC Isolated Single & Dual Output DC/DC Converters (TOPPOWER)
TPH2409D - 2W 3KVDC Isolated Single & Dual Output DC/DC Converters (TOPPOWER)

Other Datasheets by 3PEAK

TPH2501 - CMOS Op-amps
TPH2502 - CMOS Op-amps
TPH2503 - CMOS Op-amps

Full PDF Text Transcription

Click to expand full text

3PEAK Features TPH2501/TPH2502/TPH2503 /TPH2504 250MHz, Precision, Rail-to-Rail I/O, CMOS Op-amps Description ◼ Unity-Gain Bandwidth: 250MHz ◼ Gain Bandwidth Product: 120MHz ◼ High Slew Rate: 180V/μs ◼ Offset Voltage: 2mV Max. ◼ Low Noise: 6.5nV/√Hz ◼ Rail-to-Rail Input and Output ◼ High Output Current: > 100mA ◼ Excellent Video Performance: Diff Gain: 0.02%, Diff Phase: 0.3° 0.1dB Gain Flatness: 25MHz ◼ Low Input Bias Current: 0.3pA ◼ Thermal Shutdown ◼ Supply Range: 2.5V to 5.
