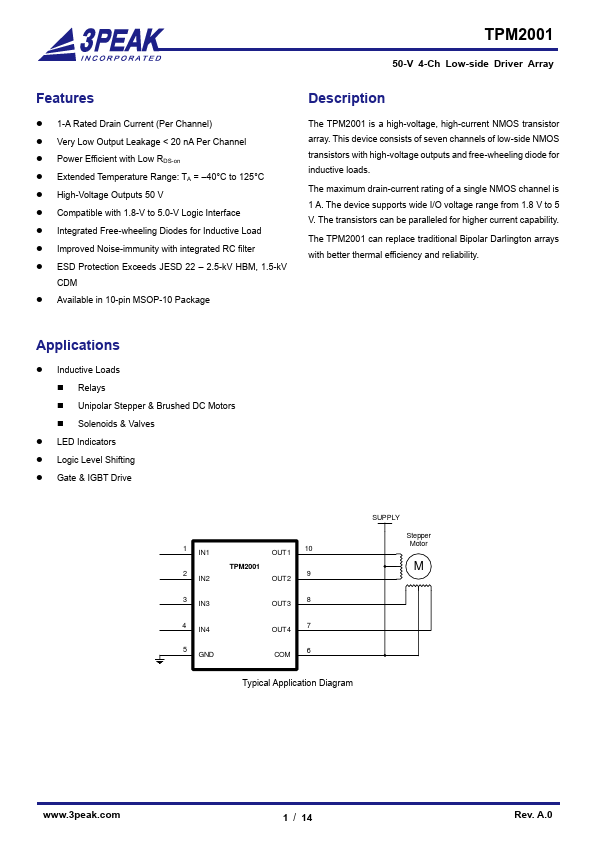

TPM2001 Description
The TPM2001 is a high-voltage, high-current NMOS transistor array. This device consists of seven channels of low-side NMOS transistors with high-voltage outputs and free-wheeling diode for inductive loads. The maximum drain-current rating of a single NMOS channel is 1.
TPM2001 Key Features
- 1-A Rated Drain Current (Per Channel)
- Very Low Output Leakage < 20 nA Per Channel
- Power Efficient with Low RDS-on
- Extended Temperature Range: TA = -40°C to 125°C
- High-Voltage Outputs 50 V
- patible with 1.8-V to 5.0-V Logic Interface
- Integrated Free-wheeling Diodes for Inductive Load
- Improved Noise-immunity with integrated RC filter
- ESD Protection Exceeds JESD 22
- 2.5-kV HBM, 1.5-kV
