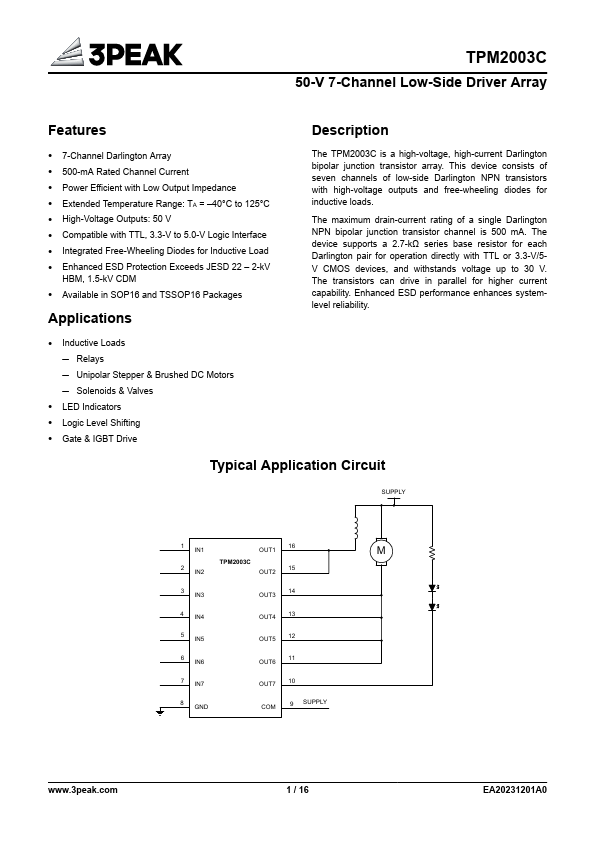

Datasheet Summary
50-V 7-Channel Low-Side Driver Array
Features
Description
- 7-Channel Darlington Array
- 500-mA Rated Channel Current
- Power Efficient with Low Output Impedance
- Extended Temperature Range: TA =
- 40°C to 125°C
- High-Voltage Outputs: 50 V
- patible with TTL, 3.3-V to 5.0-V Logic Interface
- Integrated Free-Wheeling Diodes for Inductive Load
- Enhanced ESD Protection Exceeds JESD 22
- 2-kV
HBM, 1.5-kV CDM
- Available in SOP16 and TSSOP16 Packages
Applications
The TPM2003C is a high-voltage, high-current Darlington bipolar junction transistor array. This device consists of seven channels of low-side Darlington NPN transistors with high-voltage outputs and free-wheeling...
