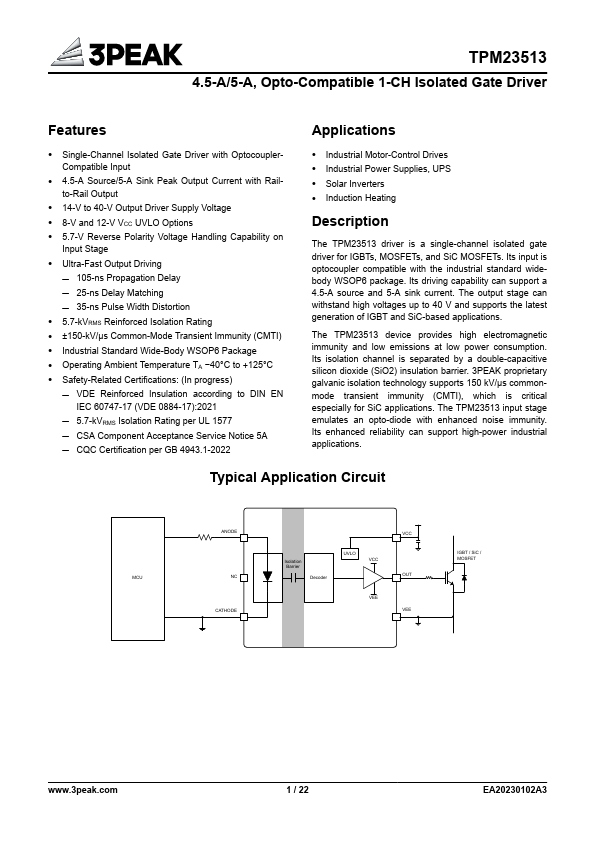

TPM23513 Description
The TPM23513 driver is a single-channel isolated gate driver for IGBTs, MOSFETs, and SiC MOSFETs. Its input is optocoupler patible with the industrial standard widebody WSOP6 package. Its driving capability can support a 4.5-A source and 5-A sink current.
TPM23513 Applications
- Single-Channel Isolated Gate Driver with Optocoupler
- 4.5-A Source/5-A Sink Peak Output Current with Rail
- 14-V to 40-V Output Driver Supply Voltage
