TPM23514BM Overview
Description

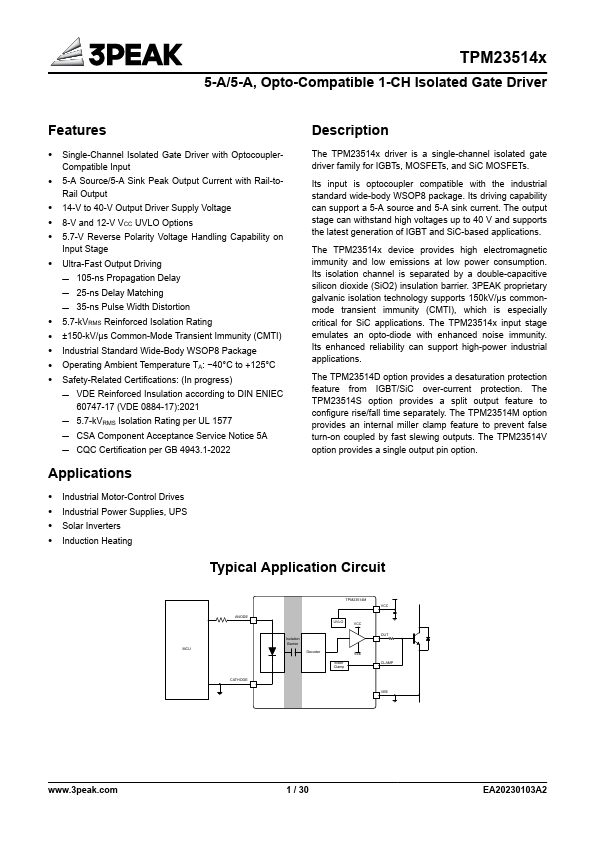

Single-Channel Isolated Gate Driver with Optocoupler- Compatible Input - 5-A Source/5-A Sink Peak Output Current with Rail-to- Rail Output - 14-V to 40-V Output Driver Supply Voltage - 8-V and 12-V VCC UVLO Options - 5.7-V Reverse Polarity Voltage Handling Capability on Input Stage - Ultra-Fast Output Driving – 105-ns Propagation Delay – 25-ns Delay Matching – 35-ns Pulse Width Distortion - 5.7-kVRMS Reinforced Isolation Rating - ±150-kV/μs Common-Mode Transient Immunity (CMTI) - Industrial Standard Wide-Body WSOP8 Package - Operating Ambient Temperature TA: -40°C to +125°C - Safety-Related Certifications: (In progress) – VDE Reinforced Insulation according to DIN ENIEC 60747-17 (VDE 0884-17):2021 – 5.7-kVRMS Isolation Rating per UL 1577 – CSA Component Acceptance Service Notice 5A – CQC Certification per GB 4943.1-2022.
