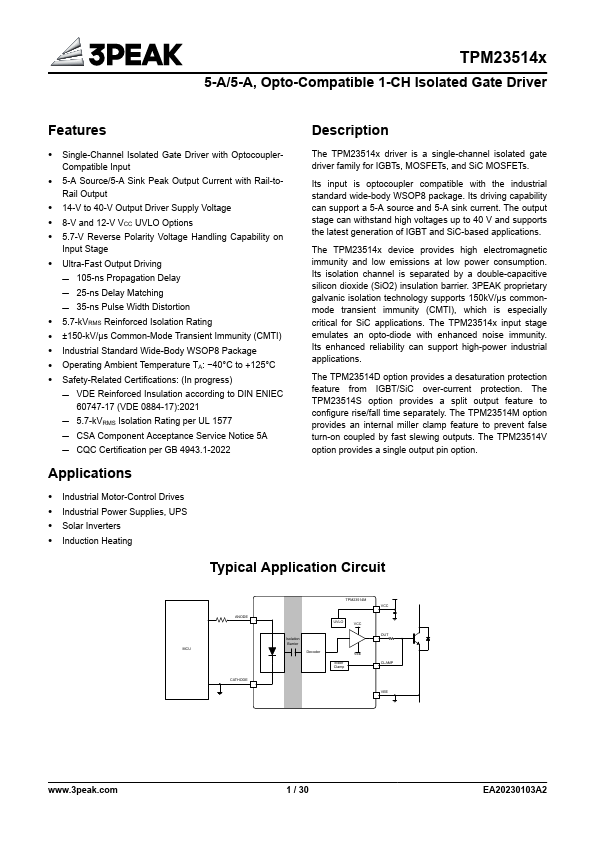

TPM23514D Description
−40°C to +125°C Safety-Related Certifications: Its input is optocoupler patible with the industrial standard wide-body WSOP8 package. Its driving capability can support a 5-A source and 5-A sink current.
TPM23514D Key Features
- Single-Channel Isolated Gate Driver with Optocoupler
- 14-V to 40-V Output Driver Supply Voltage
- 8-V and 12-V VCC UVLO Options
- 5.7-V Reverse Polarity Voltage Handling Capability on
- Ultra-Fast Output Driving
- 105-ns Propagation Delay
- 25-ns Delay Matching
- 35-ns Pulse Width Distortion
- 5.7-kVRMS Reinforced Isolation Rating
- ±150-kV/μs mon-Mode Transient Immunity (CMTI)
