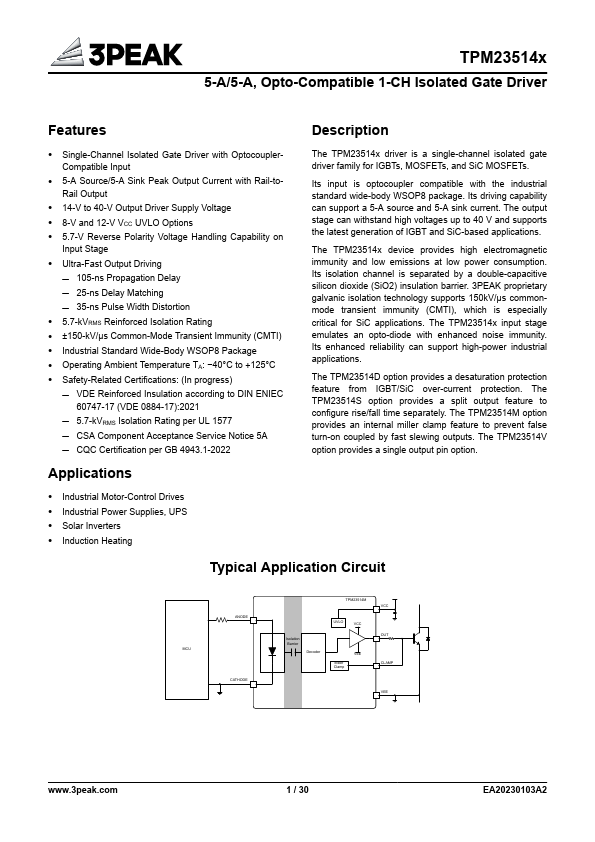

TPM23514x 5-A/5-A, Opto-patible 1-CH Isolated Gate Driver Features Description - Single-Channel Isolated Gate Driver with Optocoupler- patible Input - 5-A Source/5-A Sink Peak Output Current with Rail-to- Rail Output - 14-V to 40-V Output Driver Supply Voltage - 8-V and 12-V VCC UVLO Options - 5.7-V Reverse Polarity Voltage Handling Capability on Input Stage - Ultra-Fast Output Driving - 105-ns Propagation Delay - 25-ns Delay Matching - 35-ns Pulse Width Distortion - 5.7-k VRMS Reinforced Isolation Rating - ±150-k V/μs mon-Mode Transient Immunity (CMTI) - Industrial Standard Wide-Body WSOP8 Package - Operating Ambient Temperature TA: - 40°C to +125°C - Safety-Related Certifications: (In progress) - VDE Reinforced Insulation according to DIN ENIEC 60747-17 (VDE 0884-17):2021 - 5.7-k VRMS Isolation Rating per UL 1577 - CSA ponent Acceptance Service Notice 5A - CQC Certification per GB 4943.1-2022 Applications The TPM23514x driver is a single-channel isolated gate driver family for IGBTs, MOSFETs, and Si C MOSFETs. Its input is optocoupler patible with the industrial standard wide-body WSOP8 package. Its driving capability can support a 5-A source and 5-A sink current. The output stage can withstand high voltages up to 40 V and supports the latest generation of IGBT and Si C-based applications. The TPM23514x device provides high electromagnetic immunity and low emissions at low power consumption. Its isolation channel is separated by a double-capacitive silicon dioxide (Si O2) insulation barrier. 3PEAK proprietary galvanic isolation technology supports 150k V/μs monmode transient immunity (CMTI), which is especially critical for Si C applications. The TPM23514x input stage emulates an opto-diode with enhanced noise immunity. Its enhanced reliability can support high-power industrial...
