TPM5350M
TPM5350M is Single-Channel Isolated Gate Driver manufactured by 3PEAK.
- Part of the TPM5350S comparator family.
- Part of the TPM5350S comparator family.

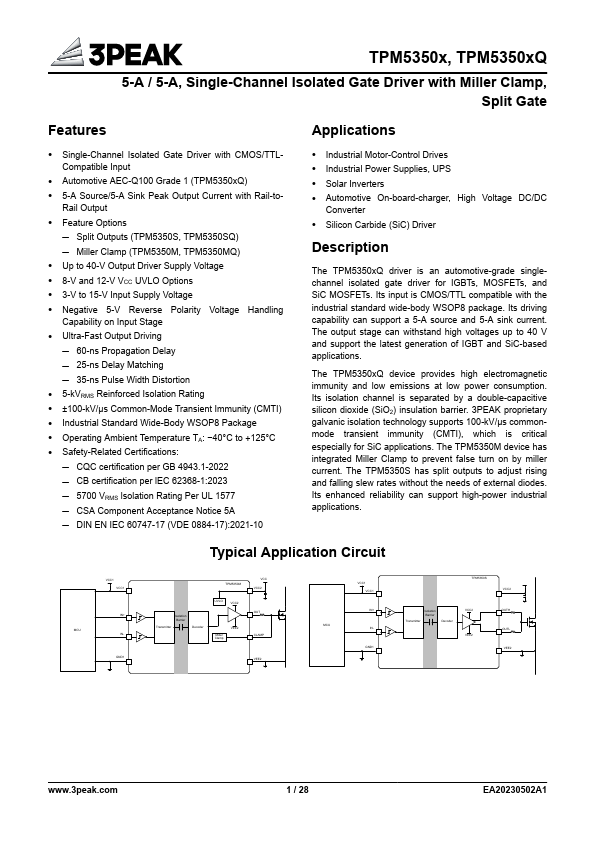

TPM5350x, TPM5350x Q
5-A / 5-A, Single-Channel Isolated Gate Driver with Miller Clamp, Split Gate
Features
Applications
- Single-Channel Isolated Gate Driver with CMOS/TTL- patible Input
- Automotive AEC-Q100 Grade 1 (TPM5350x Q)
- 5-A Source/5-A Sink Peak Output Current with Rail-to-
Rail Output
- Feature Options
- Split Outputs (TPM5350S, TPM5350SQ)
- Miller Clamp (TPM5350M, TPM5350MQ)
- Up to 40-V Output Driver Supply Voltage
- 8-V and 12-V VCC UVLO Options
- 3-V to 15-V Input Supply Voltage
- Negative 5-V Reverse Polarity Voltage Handling
Capability on Input Stage
- Ultra-Fast Output Driving
- 60-ns Propagation Delay
- 25-ns Delay Matching
- 35-ns Pulse Width Distortion
- 5-k VRMS Reinforced Isolation Rating
- ±100-k V/μs mon-Mode Transient Immunity (CMTI)
- Industrial Standard Wide-Body WSOP8 Package
- Operating Ambient Temperature TA:
- 40°C to +125°C
- Safety-Related Certifications:
- CQC certification per GB 4943.1-2022
- CB certification per l EC 62368-1:2023
- 5700 VRMS lsolation Rating Per UL 1577
- CSA ponent Acceptance Notice...
