AMEL10-MAZ - AC-DC / DC-DC Converter

Features

  • I/O Isolation 4000VAC.
  • Energy Star compliant.
  • Operating Temp: -40oC to +70oC.
  • Ultra small package.
  • Over load, Over Voltage, Short Circuit Protection.
  • Up to 80% efficiency Models Single output CB Model AMEL10-3.3SMAZ AMEL10-5SMAZ AMEL10-12SMAZ AMEL10-15SMAZ AMEL10-24SMAZ Input Voltage (VAC/Hz) 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 Input Voltage (VDC) 130-370 130-370 130-370 130-370 130-370 Max Output wattage (W) 9.9 10 10.

📥 Download Datasheet

Datasheet preview – AMEL10-MAZ

Datasheet Details

Part number AMEL10-MAZ
Manufacturer AIMTEC
File Size 553.78 KB
Description AC-DC / DC-DC Converter
Datasheet download datasheet AMEL10-MAZ Datasheet
Additional preview pages of the AMEL10-MAZ datasheet.

📁 Similar Datasheet

  • AME1084 - 5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1085 - 3A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1086 - 1.5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1117 - 1A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1505 - High Power BiPolar Linear LDO (Analog Microelectronics)
  • AME200 - magnetic rotary encoder (Alfa Electronics)
  • AME201610T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME252010T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME252012T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME256 - magnetic rotary encoder (Alfa Electronics)
Other Datasheets by AIMTEC
  • AMEL10-AZ - AC-DC / DC-DC Converter
  • AMEL10 - 10 watt encapsulated ac-dc converter
  • AMEL05 - 5 watt encapsulated ac-dc converter
  • AMEL20-AZ - AC-DC / DC-DC Converter
  • AMEL20-MAZ - AC-DC / DC-DC Converter
  • AMEL5-AZ - AC-DC / DC-DC Converter
  • AMEL5-MAZ - AC-DC / DC-DC Converter
  • AME05 - 5 watt encapsulated ac-dc converter

Full PDF Text Transcription

Click to expand full text

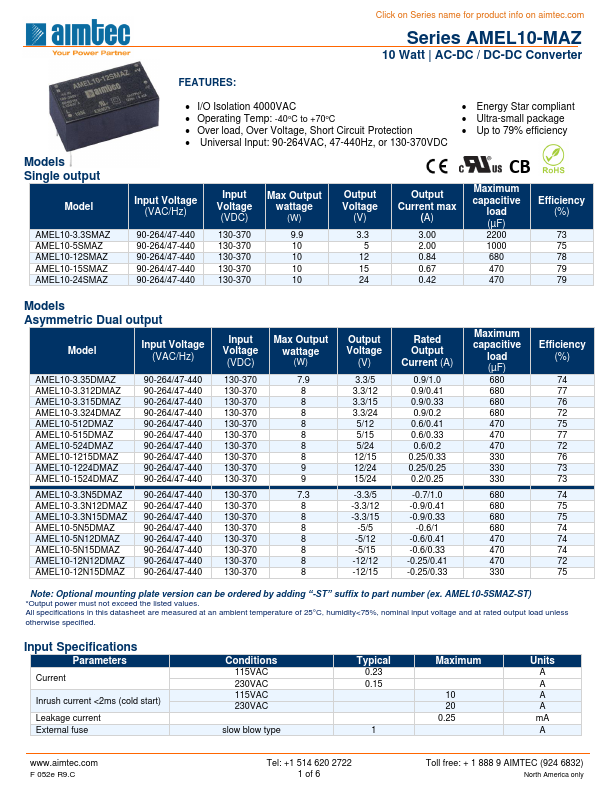

Click on Series name for product info on aimtec.com Series AMEL10-MAZ 10 Watt | AC-DC / DC-DC Converter FEATURES:  I/O Isolation 4000VAC  Energy Star compliant  Operating Temp: -40oC to +70oC  Ultra small package  Over load, Over Voltage, Short Circuit Protection  Up to 80% efficiency Models Single output CB Model AMEL10-3.3SMAZ AMEL10-5SMAZ AMEL10-12SMAZ AMEL10-15SMAZ AMEL10-24SMAZ Input Voltage (VAC/Hz) 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 Input Voltage (VDC) 130-370 130-370 130-370 130-370 130-370 Max Output wattage (W) 9.9 10 10 10 10 Output Voltage (V) 3.3 5 12 15 24 Output Current max (A) 3.00 2.00 0.84 0.67 0.
