AMEL5-MAZ - AC-DC / DC-DC Converter

Features

  • I/O Isolation 4000VAC.
  • Operating Temp: -40 oC to +80 oC or -25 oC to +80 oC.
  • Input: 90-264VAC, 47-440Hz, or 130-370VDC.
  • Over load, Over Voltage, Short Circuit Protection.
  • RoHS compliant.
  • Energy Star compliant.
  • Ultra small package.
  • Soft start Models Single output Model Input Voltage (VAC/Hz) Input Voltage (VDC) Temperature range (ºC) Output Voltage (V) Output Current max (A) Maximum capacitive Load (µF) AMEL5-3.3SMAZ 90-264/47-440 130-370 -2.

📥 Download Datasheet

Datasheet preview – AMEL5-MAZ

Datasheet Details

Part number AMEL5-MAZ
Manufacturer AIMTEC
File Size 364.93 KB
Description AC-DC / DC-DC Converter
Datasheet download datasheet AMEL5-MAZ Datasheet
Additional preview pages of the AMEL5-MAZ datasheet.

📁 Similar Datasheet

  • AME1084 - 5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1085 - 3A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1086 - 1.5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1117 - 1A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1505 - High Power BiPolar Linear LDO (Analog Microelectronics)
  • AME200 - magnetic rotary encoder (Alfa Electronics)
  • AME201610T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME252010T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME252012T - SMD Alloy Molding Power Inductors (Chilisin Electronics)
  • AME256 - magnetic rotary encoder (Alfa Electronics)
Other Datasheets by AIMTEC
  • AMEL5-AZ - AC-DC / DC-DC Converter
  • AMEL05 - 5 watt encapsulated ac-dc converter
  • AMEL10 - 10 watt encapsulated ac-dc converter
  • AMEL10-AZ - AC-DC / DC-DC Converter
  • AMEL10-MAZ - AC-DC / DC-DC Converter
  • AMEL20-AZ - AC-DC / DC-DC Converter
  • AMEL20-MAZ - AC-DC / DC-DC Converter
  • AME05 - 5 watt encapsulated ac-dc converter

Full PDF Text Transcription

Click to expand full text

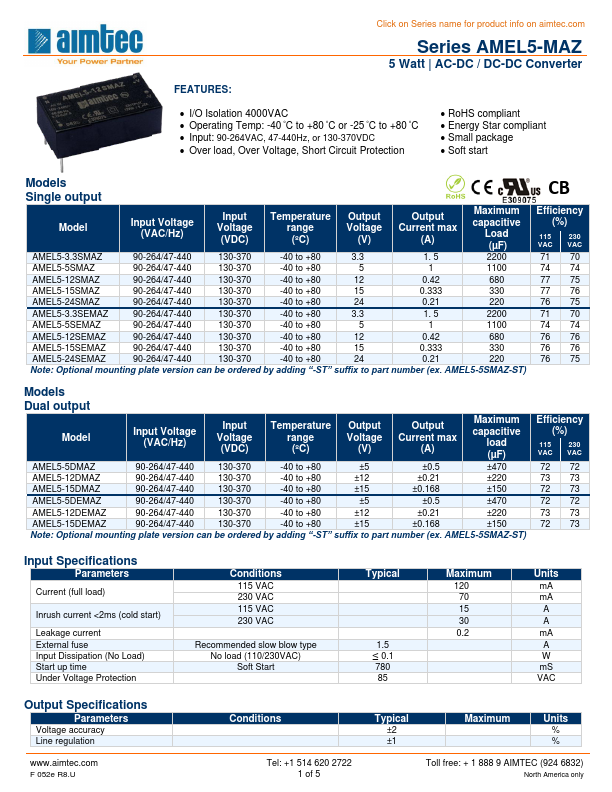

Click on Series name for product info on aimtec.com Series AMEL5-MAZ 5 Watt | AC-DC / DC-DC Converter FEATURES:  I/O Isolation 4000VAC  Operating Temp: -40 oC to +80 oC or -25 oC to +80 oC  Input: 90-264VAC, 47-440Hz, or 130-370VDC  Over load, Over Voltage, Short Circuit Protection  RoHS compliant  Energy Star compliant  Ultra small package  Soft start Models Single output Model Input Voltage (VAC/Hz) Input Voltage (VDC) Temperature range (ºC) Output Voltage (V) Output Current max (A) Maximum capacitive Load (µF) AMEL5-3.3SMAZ 90-264/47-440 130-370 -25 to +80 3.3 1. 5 2200 AMEL5-5SMAZ 90-264/47-440 130-370 -25 to +80 5 1 1100 AMEL5-12SMAZ 90-264/47-440 130-370 -25 to +80 12 0.42 680 AMEL5-15SMAZ 90-264/47-440 130-370 -25 to +80 15 0.
