G150XVN01.2
G150XVN01.2 is 15 Inch Color TFT-LCD manufactured by AU Optronics.

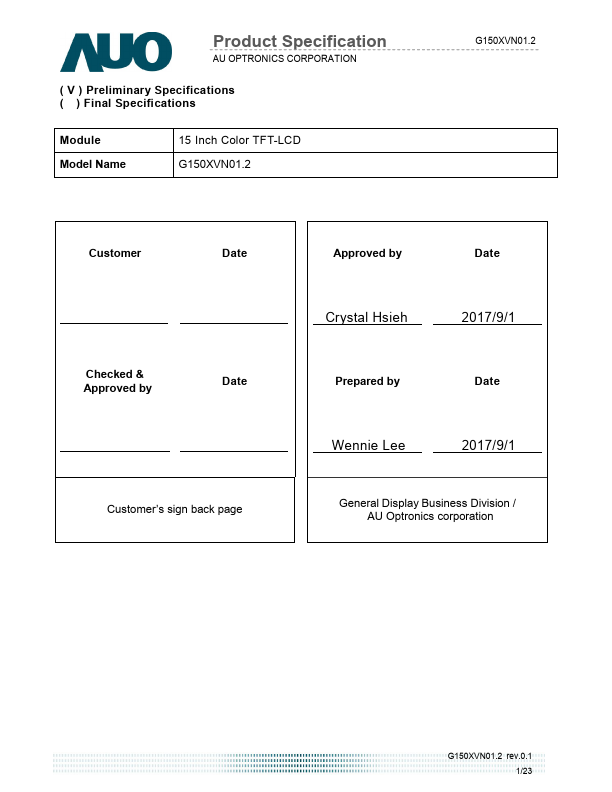

Product Specification
AU OPTRONICS CORPORATION
( V ) Preliminary Specifications ( ) Final Specifications
Module Model Name
15 Inch Color TFT-LCD G150XVN01.2
Customer
Date
Checked & Approved by
Date
Customer’s sign back page
Approved by
Date
Crystal Hsieh
2017/9/1
Prepared by
Date
Wennie Lee
2017/9/1
General Display Business Division / AU Optronics corporation
G150XVN01.2 rev.0.1 1/23
Product Specification
AU OPTRONICS CORPORATION

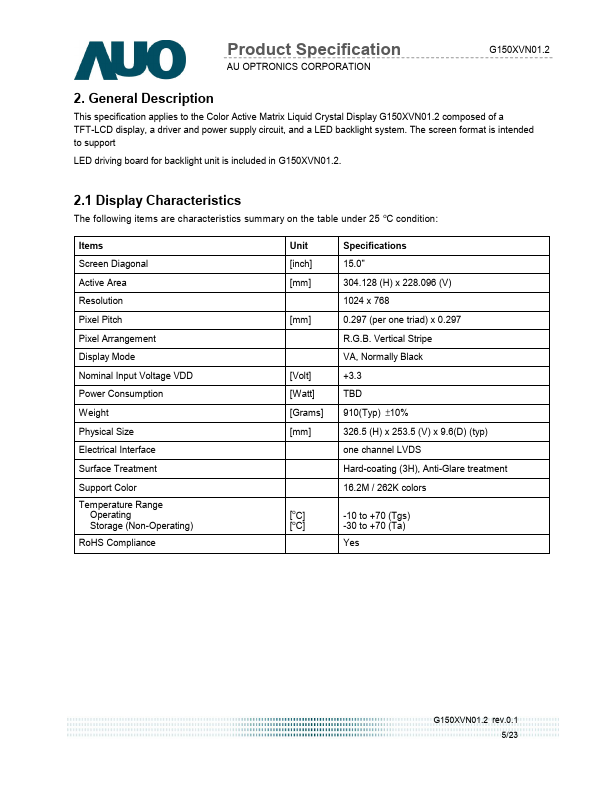

2. General Description
This specification applies to the Color Active Matrix Liquid Crystal Display G150XVN01.2 posed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support
LED driving board for backlight unit is included in G150XVN01.2.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 o C condition:
Items Screen Diagonal Active Area Resolution Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD Power Consumption Weight Physical Size Electrical Interface Surface Treatment Support Color Temperature Range
Operating Storage (Non-Operating) Ro HS pliance
Unit [inch] [mm]...
