G156HAN01.0
G156HAN01.0 is FHD Color TFT-LCD manufactured by AU Optronics.

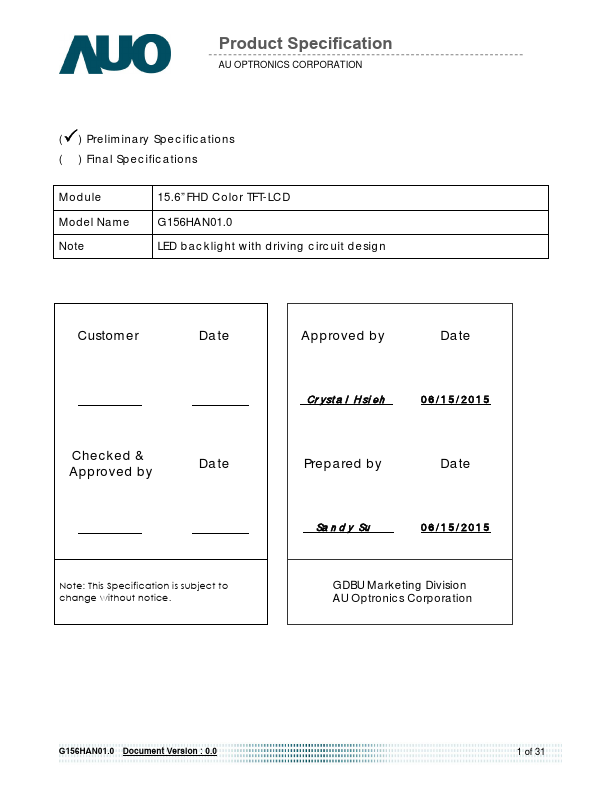

Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications ( ) Final Specifications
Module Model Name Note
15.6”FHD Color TFT-LCD G156HAN01.0 LED backlight with driving circuit design
Customer
Date
Checked & Approved by
Date
Note: This Specification is subject to change without notice.
Approved by
Date
Crystal Hsieh
06/15/2015
Prepared by
Date
Sandy Su
06/15/2015
GDBU Marketing Division AU Optronics Corporation
G156HAN01.0 Document Version : 0.0
1 of 31
Product Specification
AU OPTRONICS CORPORATION
2. General Description

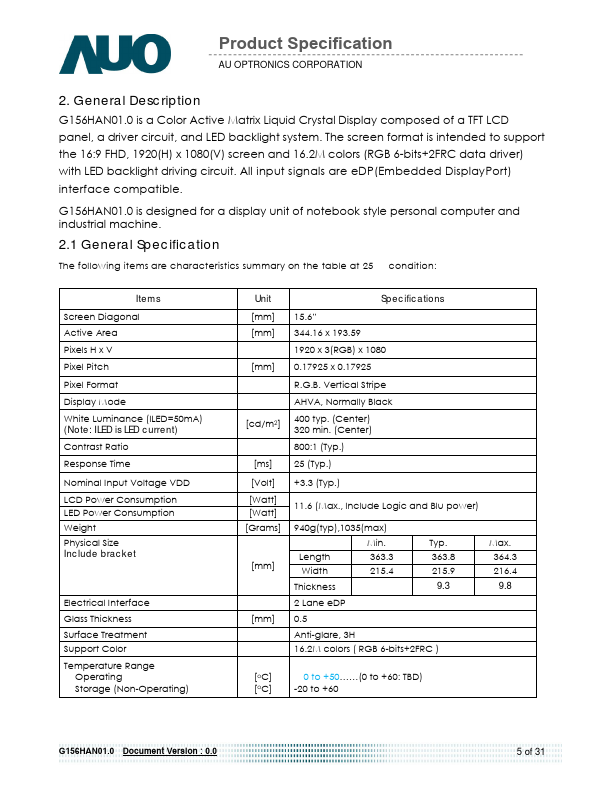

G156HAN01.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920(H) x 1080(V) screen and 16.2M colors (RGB 6-bits+2FRC data driver) with LED backlight driving circuit. All input signals are e DP(Embedded Display Port) interface patible.
G156HAN01.0 is designed for a display unit of notebook style personal puter and industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 Ċ condition:
Items Screen Diagonal Active Area Pixels H x V Pixel Pitch Pixel Format Display Mode White Luminance (ILED=50m A) (Note: ILED is LED current) Contrast Ratio Response Time Nominal Input Voltage VDD LCD Power Consumption LED Power Consumption Weight Physical Size Include bracket

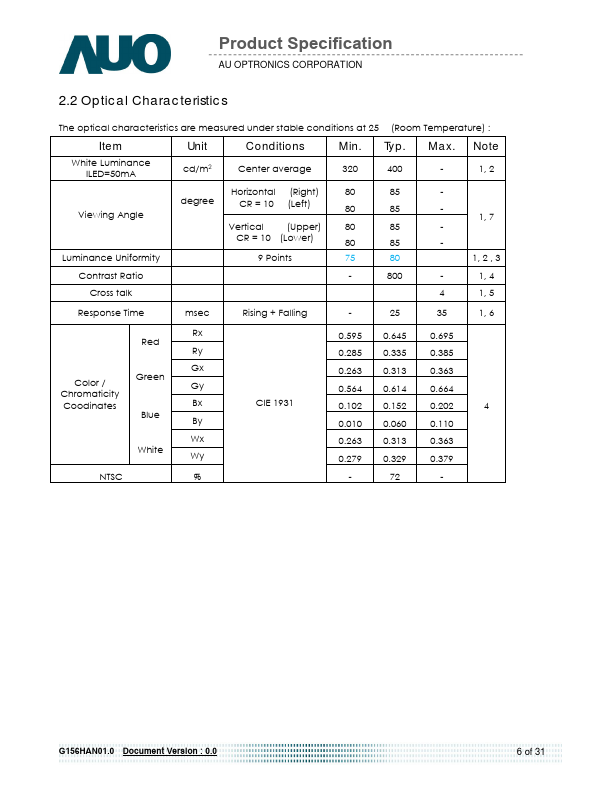

Electrical Interface Glass Thickness Surface Treatment Support Color Temperature...
