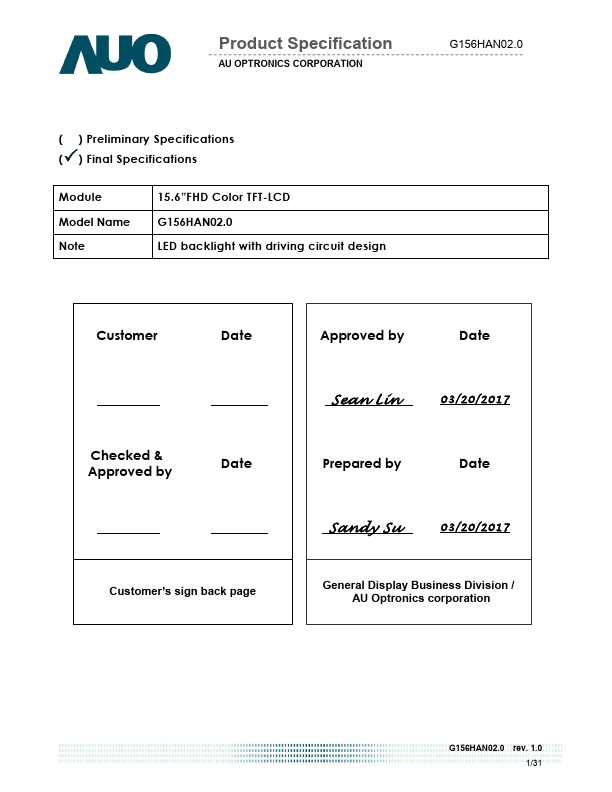

G156HAN02.0
G156HAN02.0 is FHD Color TFT-LCD manufactured by AU Optronics.
Product Specification
AU OPTRONICS CORPORATION
( ) Preliminary Specifications ( ) Final Specifications
Module Model Name Note
15.6”FHD Color TFT-LCD G156HAN02.0 LED backlight with driving circuit design
Customer
Date
Checked & Approved by
Date
Customer’s sign back page
Approved by
Date
Sean Lin
03/20/2017
Prepared by
Date
Sandy Su
03/20/2017
General Display Business Division / AU Optronics corporation
G156HAN02.0 rev. 1.0 1/31
Product Specification
AU OPTRONICS CORPORATION
2. General Description
G156HAN02.0 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 FHD, 1920(H) x 1080(V) screen and 16.2M colors (RGB 6-bits + FRC)with LED backlight driving circuit. All input signals are e DP(Embedded Display Port) interface patible.
G156HAN02.0 is designed for a display unit of notebook style personal puter and industrial machine.
2.1 General Specification
The following items are characteristics summary on the table at 25 ℃ condition:
Items Screen Diagonal Active Area Resolution Pixel Pitch Pixel Arrangement Display Mode Nominal Input Voltage VDD LCD Power Consumption LED Power Consumption Weight Physical Size Include bracket
Electrical Interface Surface Treatment Support Color Temperature Range
Operating Storage (Non-Operating)...
