G156HAN02.1 - FHD Color TFT-LCD

Product Overview

📥 Download Datasheet

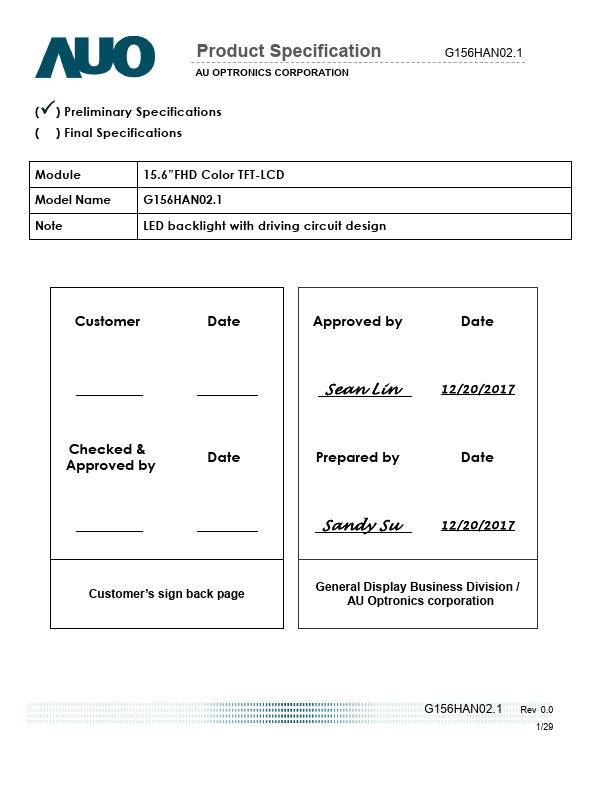

Datasheet preview – G156HAN02.1

Datasheet Details

Part number G156HAN02.1
Manufacturer AUO
File Size 1.12 MB
Description FHD Color TFT-LCD
Datasheet download datasheet G156HAN02.1 Datasheet
Additional preview pages of the G156HAN02.1 datasheet.

Product details

Description

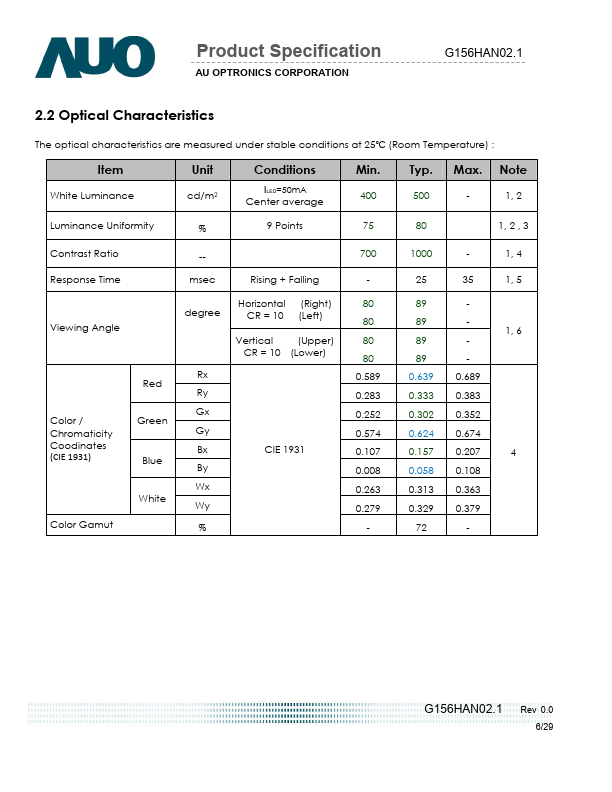

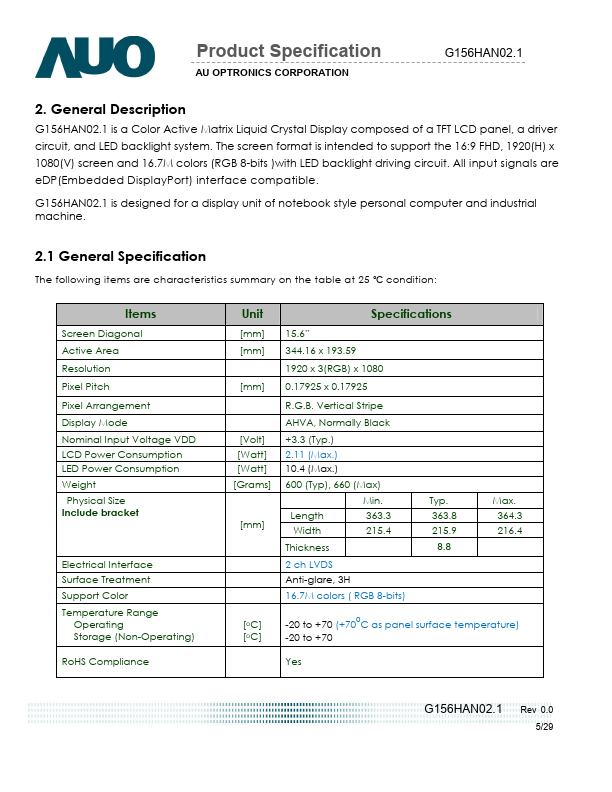

5 2.1 General Specification 5 2.2 Optical Characteristics 6 3. Functional Block Diagram 9 4. Absolute Maximum Ratings 10 4.1 Absolute Ratings of TFT LCD Module 10 4.2 Absolute Ratings of Environment 10 5.1 TFT LCD Module 11 5.2 Backlight Unit 14 6. Signal Interface Characteristic 16 6.1 Pixel Format Image 16 6.2 Scanning Direction 16 6. 3 Signal Description 17 6.4 The Input Data Format 19 6.5 Interface Timing 20 6.6 Power ON/OFF Sequence 21 7. Panel Reliability Test 22 8. Mechanical Ch
