HCPL-817 - Phototransistor Optocoupler

General Description

The HCPL-817 contains a light emitting diode optically coupled to a phototransistor.

It is packaged in a 4-pin DIP package and available in wide-lead spacing option and lead bend SMD option.

Input-output isolation voltage is 5000 Vrms.

Key Features

  • Current Transfer Ratio (CTR: min. 50% at IF = 5 mA, VCE = 5 V).
  • High input-output isolation voltage (Viso = 5000 Vrms).
  • Response time (tr: typ. , 4 μs at VCE = 2 V, IC = 2 mA, RL = 100 Ω).
  • Compact dual-in-line package.
  • UL approved.
  • CSA approved.
  • IEC/EN/DIN EN 60747-5-2 approved.
  • Options available:.
  • Leads with 0.4" (10.16 mm) spacing (W00).
  • Leads bends for surface mounting (300).
  • Tape and reel for S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HCPL-817 Phototransistor Optocoupler Broadcom
HCPL-817 Phototransistor Optocoupler Agilent
HCPL-814 Phototransistor Optocoupler Broadcom
HCPL-800J PLC Powerline DAA IC HP
HCPL-0201 Very High CMR / Wide VCC Logic Gate Optocouplers Hewlett-Packard

Other Datasheets by Avago Technologies (now Broadcom)

Part Number Description
HCPL-814 AC Input Phototransistor Optocoupler
HCPL-0201 Logic Gate Optocouplers
HCPL-0211 Logic Gate Optocouplers
HCPL-0302 (HCPL-3020 / HCPL-0302) 0.4 Amp Output Current IGBT Gate Drive Optocoupler
HCPL-0314 0.4 Amp Output Current IGBT Gate Drive Optocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

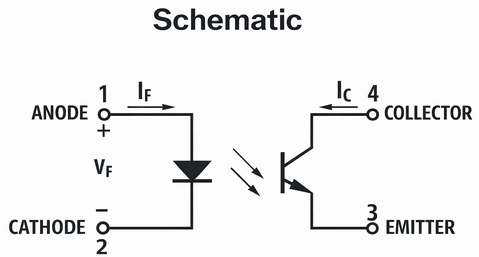

HCPL-817 Phototransistor Optocoupler High Density Mounting Type Data Sheet Lead (Pb) Free RoHS 6 fully compliant RoHS 6 fully compliant options available; -xxxE denotes a lead-free product Description The HCPL-817 contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin DIP package and available in wide-lead spacing option and lead bend SMD option. Input-output isolation voltage is 5000 Vrms. Response time, tr, is typically 4 μs and minimum CTR is 50% at input current of 5 mA. Schematic 1 ANODE + VF IF – CATHODE 2 IC 4 COLLECTOR 3 EMITTER Functional Diagram PIN NO. AND INTERNAL CONNECTION DIAGRAM 43 Features • Current Transfer Ratio (CTR: min.
