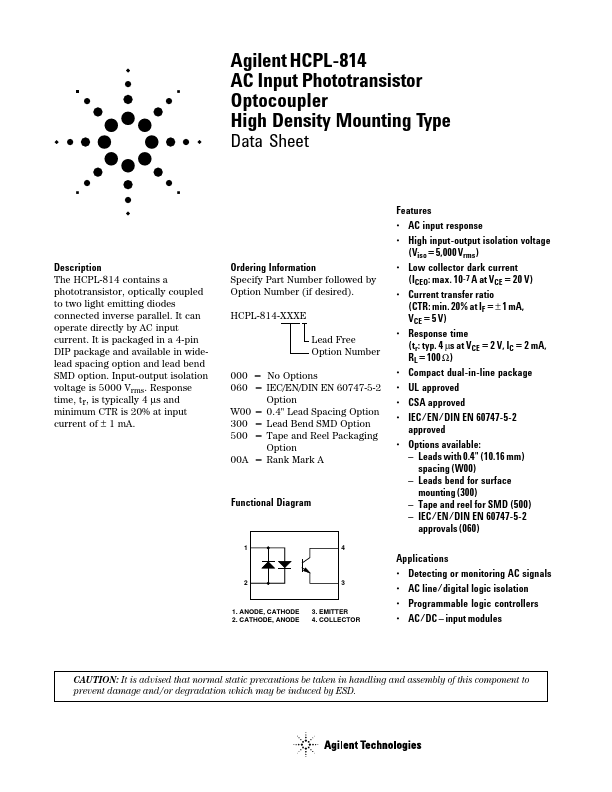

Agilent HCPL-814 AC Input Phototransistor Optocoupler High Density Mounting Type Data Sheet Description The HCPL-814 contains a phototransistor, optically coupled to two light emitting diodes connected inverse parallel. It can operate directly by AC input current. It is packaged in a 4-pin DIP package and available in widelead spacing option and lead bend SMD option. Input-output isolation voltage is 5000 Vrms. Response time, tr, is typically 4 µs and minimum CTR is 20% at input current of ± 1 mA. Ordering Information Specify Part Number followed by Option Number (if desired). HCPL-814-XXXE Lead Free Option Number 000 = No Options 060 = IEC/EN/DIN EN 60747-5-2 Option W00 = 0.4" Lead...
