AP9563GJ-HF Datasheet PDF - Advanced Power Electronics P-CHANNEL ENHANCEMENT MODE POWER MOSFET Specs

AP9563GJ-HF - P-CHANNEL ENHANCEMENT MODE POWER MOSFET

This page provides the datasheet information for the AP9563GJ-HF, a member of the AP9563GH-HF P-CHANNEL ENHANCEMENT MODE POWER MOSFET family.

Datasheet Summary

Description

Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Datasheet Details

Part number	AP9563GJ-HF
Manufacturer	Advanced Power Electronics
File Size	95.71 KB
Description	P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet	AP9563GJ-HF Datasheet
Additional preview pages of the AP9563GJ-HF datasheet.

📁 Similar Datasheet

AP9561GH-HF - P-Channel 40V MOSFET (VBsemi)

AP9567GH-HF - P-Channel 40V MOSFET (VBsemi)

AP9569GH - P-Channel 40V MOSFET (VBsemi)

AP9575GM - P-Channel MOSFET (VBsemi)

AP9050 - PROTECTION INTERFACE (Diodes Incorporated)

AP9060 - OVERVOLTAGE CLAMP (Diodes Incorporated)

AP90N03D - 30V N-Channel Enhancement Mode MOSFET (APM)

AP90N03NF - 30V N-Channel Enhancement Mode MOSFET (APM)

AP90N08NF - 85V N-Channel Enhancement Mode MOSFET (APM)

AP90N12D - 120V N-Channel Enhancement Mode MOSFET (APM)

Full PDF Text Transcription

Click to expand full text

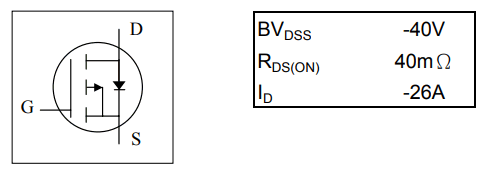

AP9563GH/J-HF Halogen-Free Product Advanced Power Electronics Corp. ▼ Lower Gate Charge ▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ RoHS Compliant G S D P-CHANNEL ENHANCEMENT MODE POWER MOSFET BVDSS RDS(ON) ID -40V 40mΩ -26A Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. G D S TO-252(H) The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. The through-hole version (AP9563GJ) is available for low-profile applications.

Published: Oct 5, 2014 |
