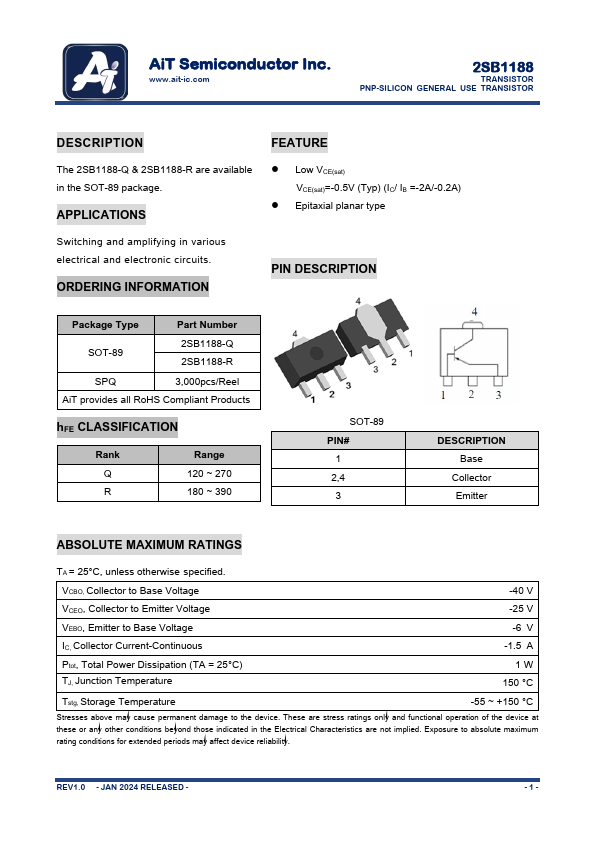

2SB1188
2SB1188 is PNP-SILICON GENERAL USE TRANSISTOR manufactured by AiT Semiconductor.
DESCRIPTION
The 2SB1188-Q & 2SB1188-R are available in the SOT-89 package.
APPLICATIONS
Switching and amplifying in various electrical and electronic circuits.
ORDERING INFORMATION
FEATURE
- Low VCE(sat) VCE(sat)=-0.5V (Typ) (IC/ IB =-2A/-0.2A)
- Epitaxial planar type
PIN DESCRIPTION
Package Type SOT-89
Part Number 2SB1188-Q 2SB1188-R
3,000pcs/Reel
Ai T provides all Ro HS pliant Products h FE CLASSIFICATION
Rank Q R
Range 120 ~ 270 180 ~ 390
SOT-89 PIN#
1 2,4 3
DESCRIPTION
Base
Collector Emitter
ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise specified.
VCBO, Collector to Base Voltage
-40 V
VCEO, Collector to Emitter Voltage
-25 V
VEBO, Emitter to Base Voltage
-6 V
IC, Collector Current-Continuous
-1.5 A
Ptot, Total Power Dissipation (TA = 25°C) TJ, Junction Temperature
1W 150 °C
Tstg, Storage Temperature
-55 ~ +150 °C
Stresses above may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated in the Electrical Characteristics are not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
REV1.0
- JAN 2024 RELEASED

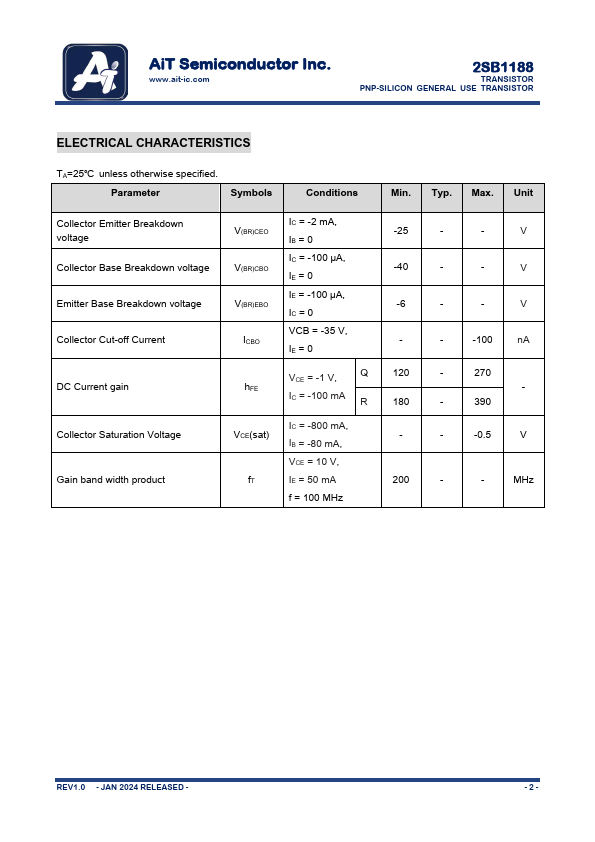

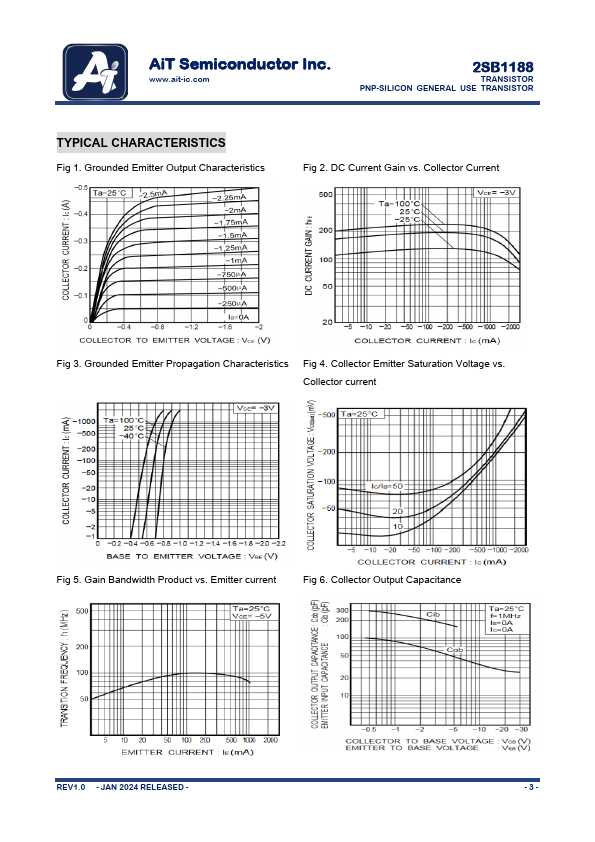

- -1-
