2SB1188 - Medium power transistor

Key Features

  • z Low VCE(SAT)=-0.5V(Typ. ) (IC/IB=-1.5A/-0.15A). z Complementary the 2SD1766. Pb Lead-free 2SB1188.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1188 Medium power Transistor Rohm
2SB1188 2A General Purpose PNP Transistor CITC
2SB1188 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB1188 Epitaxial Planar PNP Transistors Weitron Technology
2SB1188 MEDIUM POWER LOW-VOLTAGE TRANSISTOR UTC

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB1184 Power Transistor
2SB1185 Power Transistor
2SB1189 Medium power transistor
2SB1119 PNP Epitaxial Planar Silicon Transistors
2SB1132 PNP General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

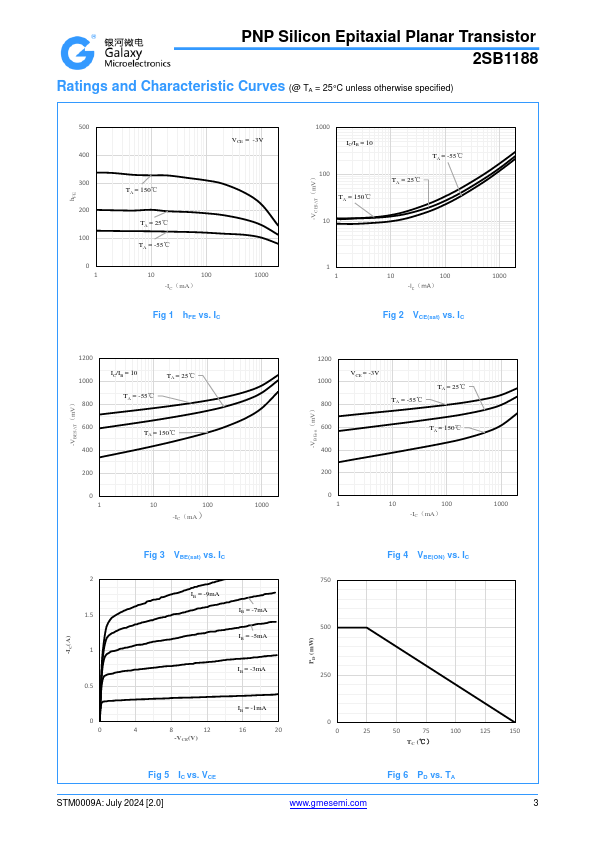

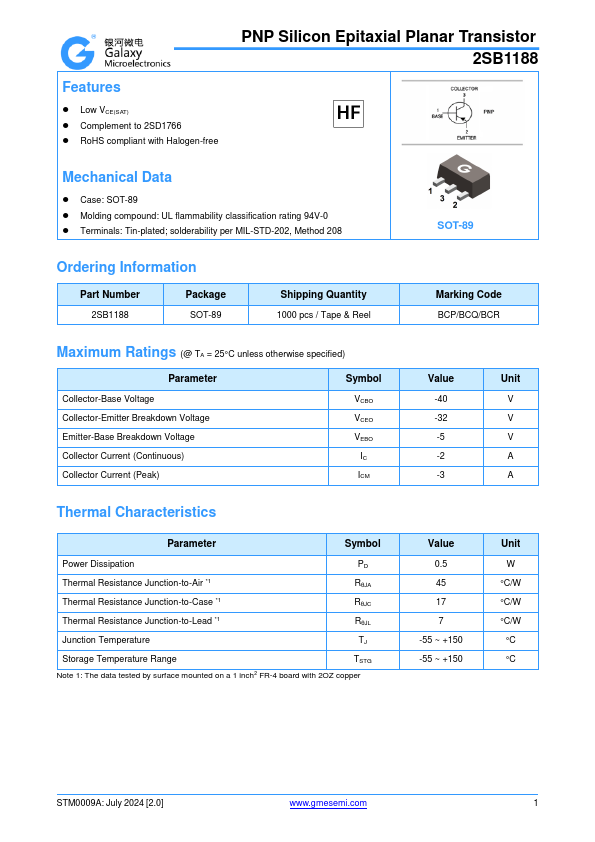

Production specification Medium power transistor FEATURES z Low VCE(SAT)=-0.5V(Typ.) (IC/IB=-1.5A/-0.15A). z Complementary the 2SD1766. Pb Lead-free 2SB1188 APPLICATIONS z Epitaxial planar type. z PNP silicon transistor. ORDERING INFORMATION Type No. Marking 2SB1188 BCP/BCQ/BCR SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO Collector-Base Voltage -40 V VCEO Collector-Emitter Voltage -32 V VEBO IC PC Emitter-Base Voltage Collector Current –DC -Pulse Collector power dissipation -5 V -2 -3 A 350 mW Tj,Tstg Junction and Storage Temperature -55 to +150 ℃ E036 Rev.A www.gmicroelec.
