BSS84DW - P-CHANNEL POWER MOSFET

General Description

The BSS84DW is available in the SOT-363 packages.

Video monitor Power management Load Switch FEATURE Trench Power LV MOSFET Technology Low RDS(ON) Low Gate Charge PIN DESCRIPTION ORDERING INFORMATION Package Type

📥 Download Datasheet

Datasheet Details

Part number BSS84DW
Manufacturer AiT Semiconductor
File Size 1.54 MB
Description P-CHANNEL POWER MOSFET
Datasheet download datasheet BSS84DW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSS84DW DUAL P-CHANNEL ENHANCEMENT MODE MOSFET Diodes Incorporated
BSS84DW P-CHANNEL MOSFET H&M Semiconductor
BSS84DW Dual P-Channel MOSFET Kexin
BSS84DW P-Channel Enhancement Mode MOSFET GME
BSS84DW P-Channel Enhancement Mode MOSFET Bruckewell

Other Datasheets by AiT Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

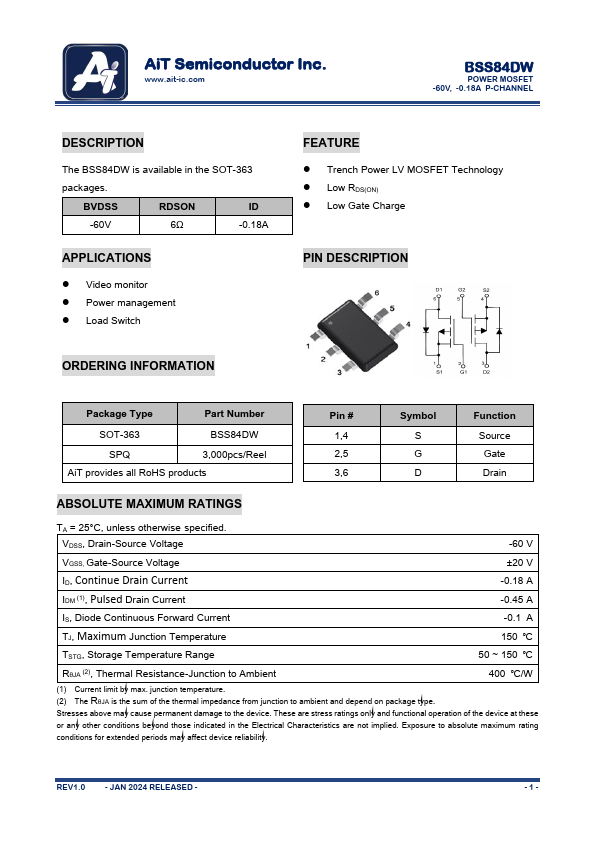

AiT Semiconductor Inc. www.ait-ic.com BSS84DW POWER MOSFET -60V, -0.18A P-CHANNEL DESCRIPTION The BSS84DW is available in the SOT-363 packages. BVDSS -60V RDSON 6Ω ID -0.18A APPLICATIONS  Video monitor  Power management  Load Switch FEATURE  Trench Power LV MOSFET Technology  Low RDS(ON)  Low Gate Charge PIN DESCRIPTION ORDERING INFORMATION Package Type Part Number SOT-363 BSS84DW SPQ 3,000pcs/Reel AiT provides all RoHS products Pin # 1,4 2,5 3,6 Symbol S G D Function Source Gate Drain ABSOLUTE MAXIMUM RATINGS TA = 25°C, unless otherwise specified. VDSS, Drain-Source Voltage -60 V VGSS, Gate-Source Voltage ±20 V ID, Continue Drain Current -0.18 A IDM (1), Pulsed Drain Current -0.45 A IS, Diode Continuous Forward Current -0.
