BSS84DW - P-Channel Enhancement Mode MOSFET

Key Features

  • l Low on-resistance l High-speed switching l Drive circui ts can be simple l Parallel use is easy Typical.

📥 Download Datasheet

Datasheet Details

Part number BSS84DW
Manufacturer Bruckewell
File Size 553.98 KB
Description P-Channel Enhancement Mode MOSFET
Datasheet download datasheet BSS84DW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSS84DW DUAL P-CHANNEL ENHANCEMENT MODE MOSFET Diodes Incorporated
BSS84DW P-CHANNEL MOSFET H&M Semiconductor
BSS84DW Dual P-Channel MOSFET Kexin
BSS84DW P-Channel Enhancement Mode MOSFET GME
BSS84DW P-CHANNEL POWER MOSFET AiT Semiconductor

Other Datasheets by Bruckewell

Part Number Description
BSS84 P-Channel MOSFET
BSS123 N-Channel ENHANCEMENT MODE MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

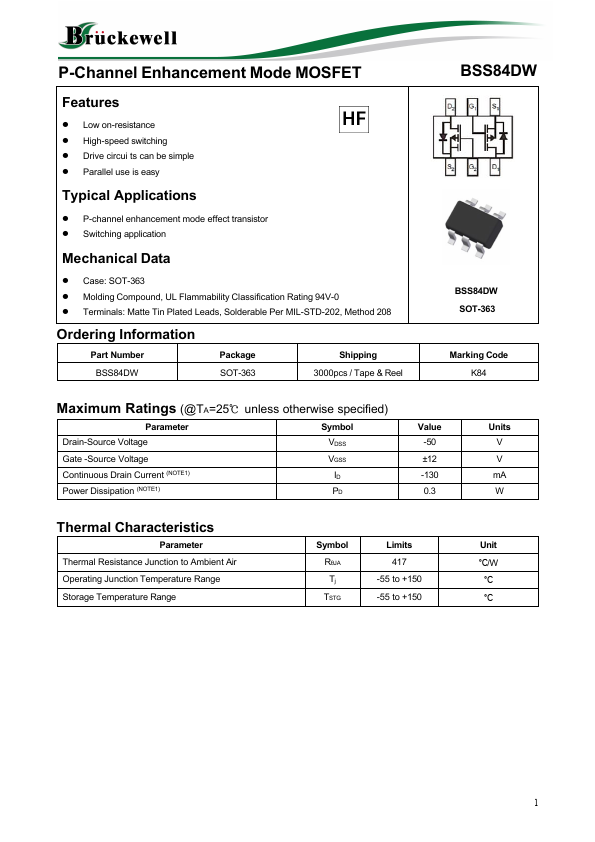

P-Channel Enhancement Mode MOSFET Features l Low on-resistance l High-speed switching l Drive circui ts can be simple l Parallel use is easy Typical Applications l P-channel enhancement mode effect transistor l Switching application Mechanical Data l Case: SOT-363 l Molding Compound, UL Flammability Classification Rating 94V-0 l Terminals: Matte Tin Plated Leads, Solderable Per MIL-STD-202, Method 208 Ordering Information Part Number BSS84DW Package SOT-363 Shipping 3000pcs / Tape & Reel BSS84DW BSS84DW SOT-363 Marking Code K84 Maximum Ratings (@TA=25℃ unless otherwise specified) Parameter Symbol Drain-Source Voltage VDSS Gate -Source Voltage Continuous Drain Current (NOTE1) Power Dissipation (NOTE1) VGSS ID PD Value -50 ±12 -130 0.
