AOM020V120X3Q - 1200V Silicon Carbide Power MOSFET

Key Features

  • Proprietary αSiC MOSFET technology.
  • Low loss, with low RDS, ON.
  • Fast switching with low RG and low capacitance.
  • Flexible gate voltage range (VGS = 15 to 18V).
  • Low reverse recovery diode (Qrr).
  • AEC-Q101 Automotive Qualified.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOM080S5R LIQUID CRYSTAL DISPLAY AZ Displays
AOM121S Liquid Crystal Display AZ Displays
AOM12832A0-2.23WW OLED ORIENT DISPLAY
AOM12864A0-0.96WW OLED ORIENT DISPLAY
AOM12864A0-0.96WW-ANO OLED ORIENT DISPLAY

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOM025V120X3Q 1200V Silicon Carbide Power MOSFET
AOM015V65X2 650V Silicon Carbide Power MOSFET
AOM015V75X2Q 750V Silicon Carbide Power MOSFET
AOM033V120X2 1200V Silicon Carbide Power MOSFET
AOM033V120X2Q Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

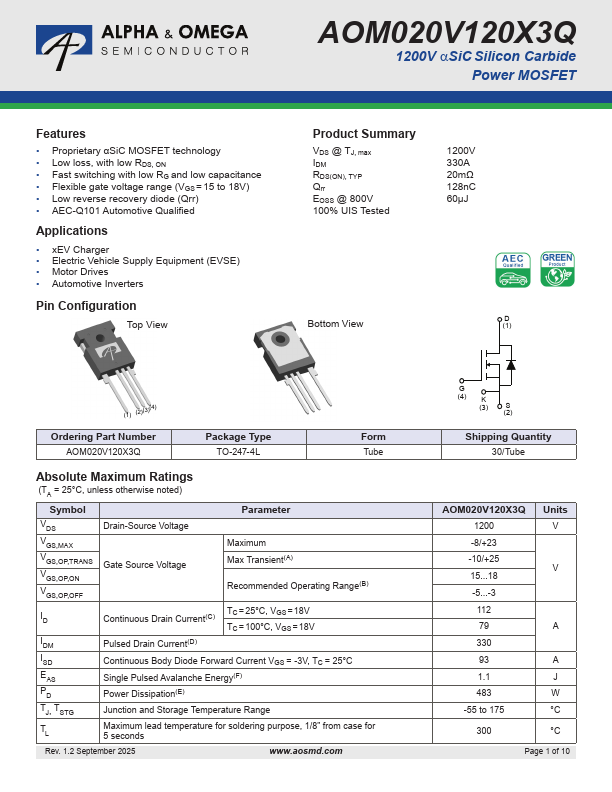

AOM020V120X3Q 1200V αSiC Silicon Carbide Power MOSFET Features • Proprietary αSiC MOSFET technology • Low loss, with low RDS, ON • Fast switching with low RG and low capacitance • Flexible gate voltage range (VGS = 15 to 18V) • Low reverse recovery diode (Qrr) • AEC-Q101 Automotive Qualified Applications • xEV Charger • Electric Vehicle Supply Equipment (EVSE) • Motor Drives • Automotive Inverters Pin Configuration Top View Product Summary VDS @ TJ, max IDM RDS(ON), TYP Qrr EOSS @ 800V 100% UIS Tested 1200V 330A 20mΩ 128nC 60µJ Bottom View D (1) (1) (2)(3)(4) Ordering Part Number AOM020V120X3Q Package Type TO-247-4L Form Tube Absolute Maximum Ratings (TA = 25°C, unless otherwise noted) Symbol VDS VGS,MAX VGS,OP,TRANS VGS,OP,ON VGS,OP,OFF Drain-Source Voltage Gate Source Voltage
