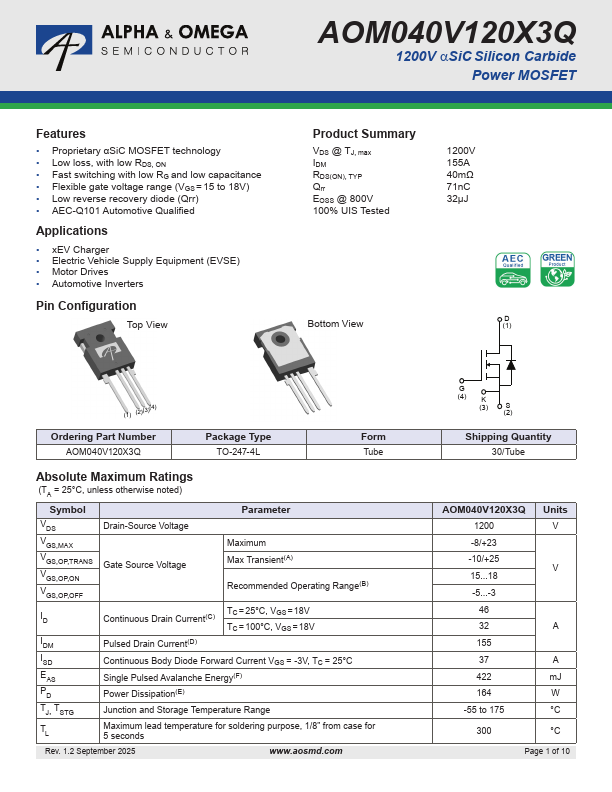

AOM040V120X3Q 1200V αSiC Silicon Carbide Power MOSFET
Features
• Proprietary αSiC MOSFET technology • Low loss, with low RDS, ON • Fast switching with low RG and low capacitance • Flexible gate voltage range (VGS = 15 to 18V) • Low reverse recovery diode (Qrr) • AEC-Q101 Automotive Qualified
Applications
• xEV Charger • Electric Vehicle Supply Equipment (EVSE) • Motor Drives • Automotive Inverters
Pin Configuration
Top View
Product Summary
VDS @ TJ, max IDM RDS(ON), TYP Qrr EOSS @ 800V 100% UIS Tested
1200V 155A 40mΩ 71nC 32µJ
Bottom View
D (1)
(1) (2)(3)(4)
Ordering Part Number AOM040V120X3Q
Package Type TO-247-4L
Form Tube
Absolute Maximum Ratings
(TA = 25°C, unless otherwise noted)
Symbol VDS VGS,MAX VGS,OP,TRANS VGS,OP,ON VGS,OP,OFF
Drain-Source Voltage Gate Source Voltage
AOM040V120X3Q Datasheet
