Overview: AO3400A 30V N-Channel MOSFET General.
| Part number | AO3400A |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors |
| File Size | 310.40 KB |
| Description | 30V N-Channel MOSFET |
| Datasheet | AO3400A_AlphaOmegaSemiconductors.pdf |
|
|
|
Product Summary The AO3400A bines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).
This device is suitable for use as a load switch or in PWM applications.

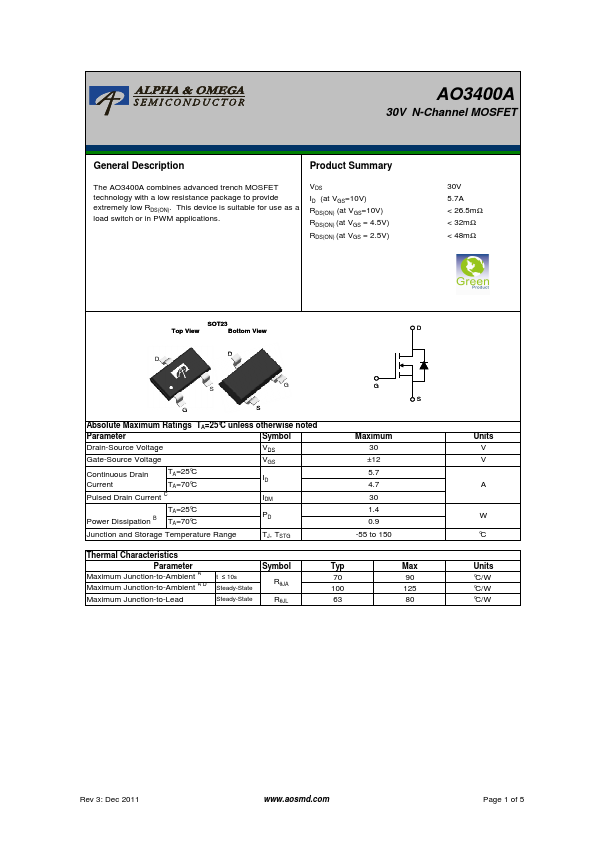

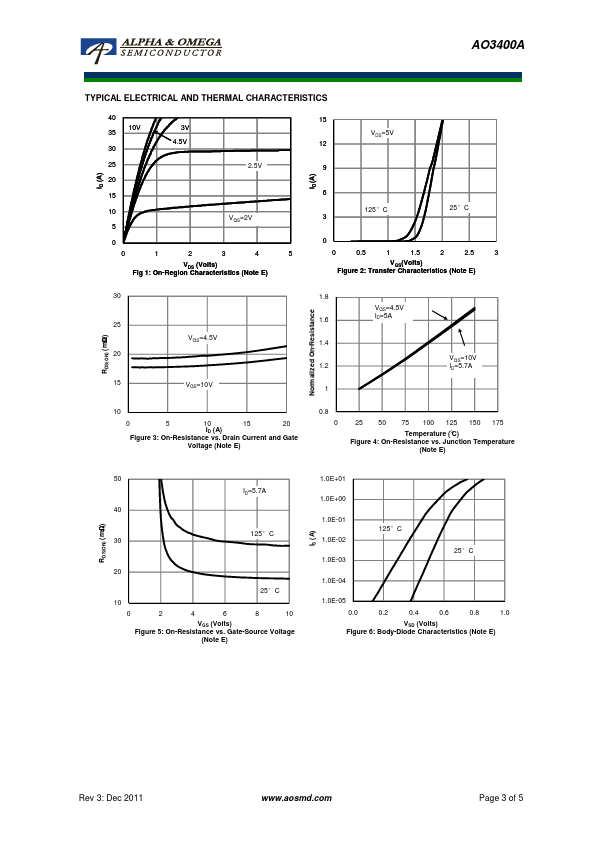

VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) RDS(ON) (at VGS = 2.5V) 30V 5.7A < 26.5mW < 32mW < 48mW SOT23 Top View Bottom View D D D S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TA=25°C TA=70°C ID Pulsed Drain Current C IDM TA=25°C Power Dissipation B TA=70°C PD Junction and Storage Temperature Range TJ, TSTG G S Maximum 30 ±12 5.7 4.7 30 1.4 0.9 -55 to 150 Thermal Characteristics Parameter Symbol Typ Maximum Junction-to-Ambient A t ≤ 10s Maximum Junction-to-Ambient A D Steady-State RqJA 70 100 Maximum Junction-to-Lead Steady-State RqJL 63 Max 90 125 80 Units V V A W °C Units °C/W °C/W °C/W Rev 3.1: July 2023 .aosmd.
