AO3407A - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-4.3 A (VGS =-10V).
  • RDS(ON) ＜ 48mΩ (VGS =-10V).
  • RDS(ON) ＜ 78mΩ (VGS =-4.5V) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 D 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25°C TA=70°C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO3407A P-Channel MOSFET VBsemi
AO3407A 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO3407 30V P-Channel MOSFET Alpha & Omega Semiconductors
AO3407 P-Channel MOSFET HOTTECH
AO3407 P-CHANNEL MOSFET BLUE ROCKET ELECTRONICS

Other Datasheets by Kexin Semiconductor

Part Number Description
AO3407 P-Channel MOSFET
AO3400 N-Channel MOSFET
AO3400A N-Channel MOSFET
AO3401 P-Channel MOSFET
AO3401A P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

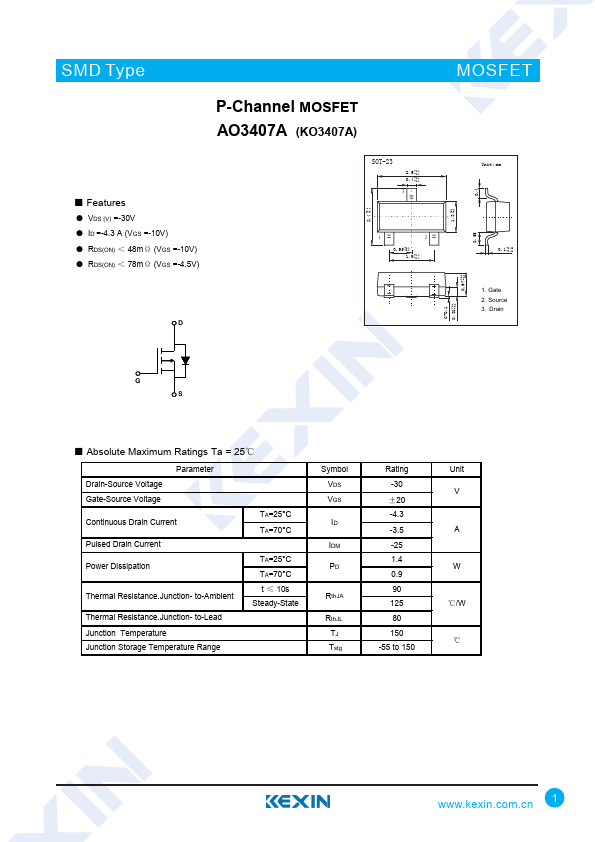

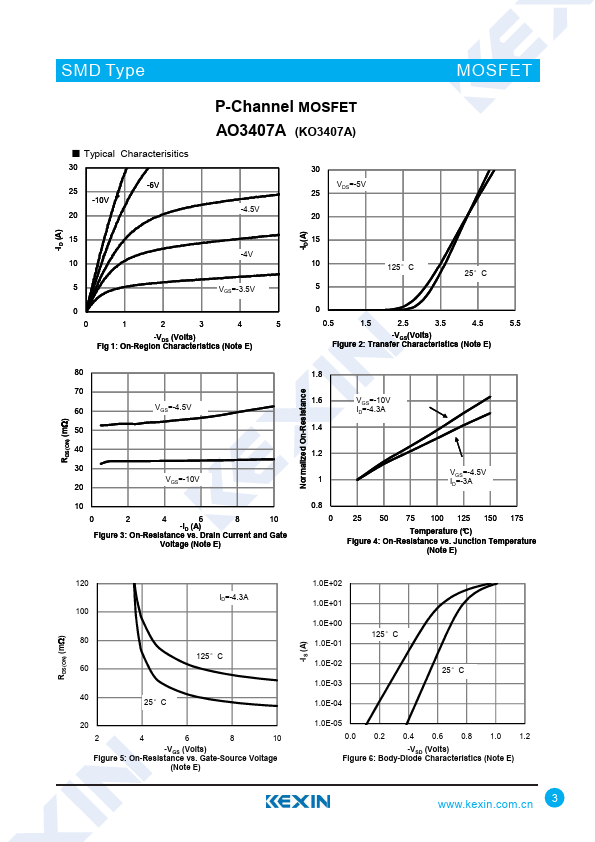

SMD Type P-Channel MOSFET AO3407A (KO3407A) ■ Features ● VDS (V) =-30V ● ID =-4.3 A (VGS =-10V) ● RDS(ON) ＜ 48mΩ (VGS =-10V) ● RDS(ON) ＜ 78mΩ (VGS =-4.5V) +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 D 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current TA=25°C TA=70°C Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead TA=25°C TA=70°C t ≤ 10s Steady-State Junction Temperature Junction Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA RthJL TJ Tstg Rating -30 ±20 -4.3 -3.
