Amazing Microelectronic AZ4012-01H

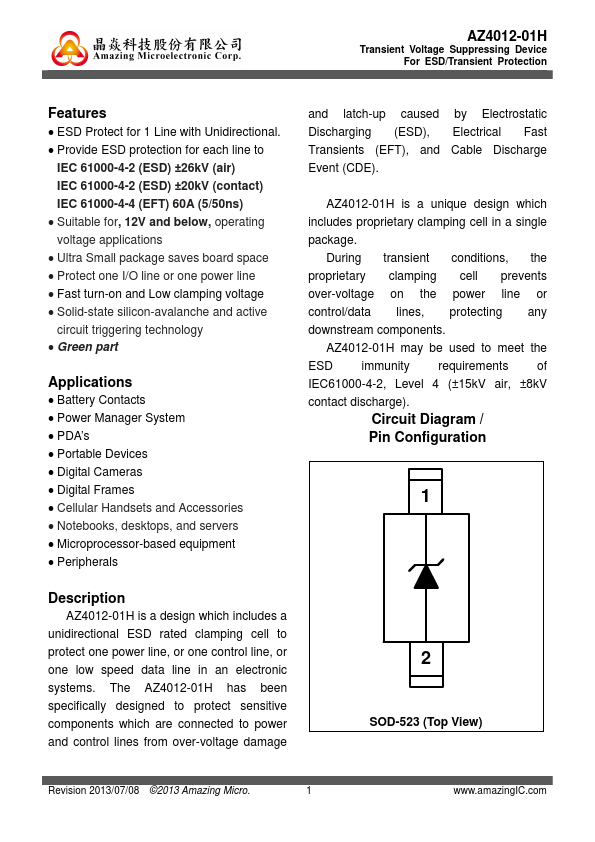

AZ4012-01H is a unique design which includes proprietary clamping cell in a single package. The AZ4012-01H has been specifically designed to protect sensitive components which are connected to power and control lines from over-voltage damage 2 SOD-523 (Top View) Revision 2013/07/08 ©2013 Amazing Micro. Circuit Diagram / Pin Configuration 1 Description AZ4012-01H is a design which includes a unidirectional ESD rated clamping cell to protect one power line, or one control line, or one low speed data line in an electronic systems.

Part No.	AZ4012-01H
Datasheet	AZ4012-01H Download
Manufacturer	Amazing Microelectronic
Description	Transient Voltage Suppressing Device
Buy	Stock & Price

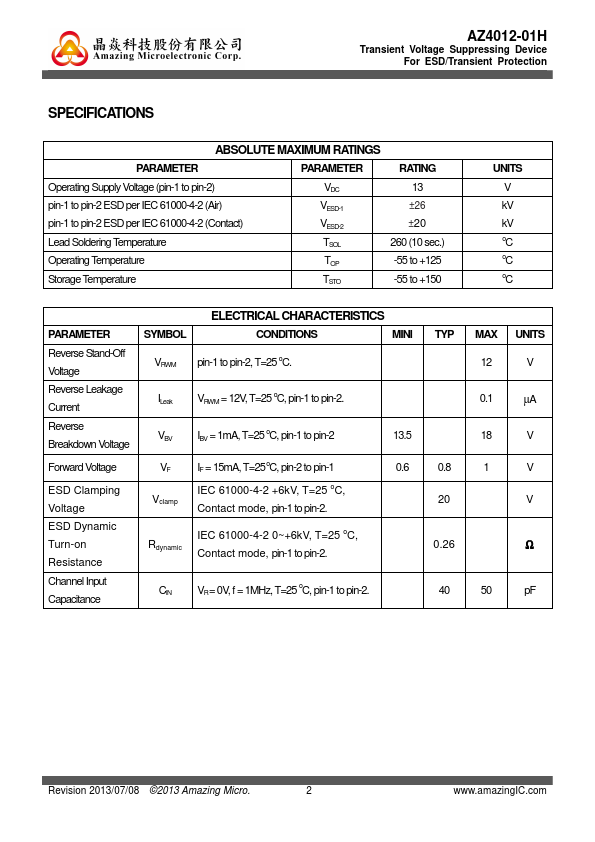

FEATURES

ESD Protect for 1 Line with Unidirectional. Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±26kV (air) IEC 61000-4-2 (ESD) ±20kV (contact) IEC 61000-4-4 (EFT) 60A (5/50ns) Suitable for, 12V and below, operating voltage applications Ultra Small package saves board space Protect one I/O line or one power line Fast turn-on and Low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part

APPLICATIONS

Battery Contacts Power Manager System PDA’s Portable Devices Digital Cameras Digital Frames Cellular Handsets and Accessories Notebooks, desktops, and servers Microprocessor-based equipment Peripherals and latch-up caused by Electrostatic Discharging (ESD), Electrical Fast Transients (EFT), and Cable Discharge Event (CDE). During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream components. AZ4012-01H may be used to meet the ESD immunity requirements of IEC61000-4-2, Level 4 (±15kV air, ±8kV contact discharge).
