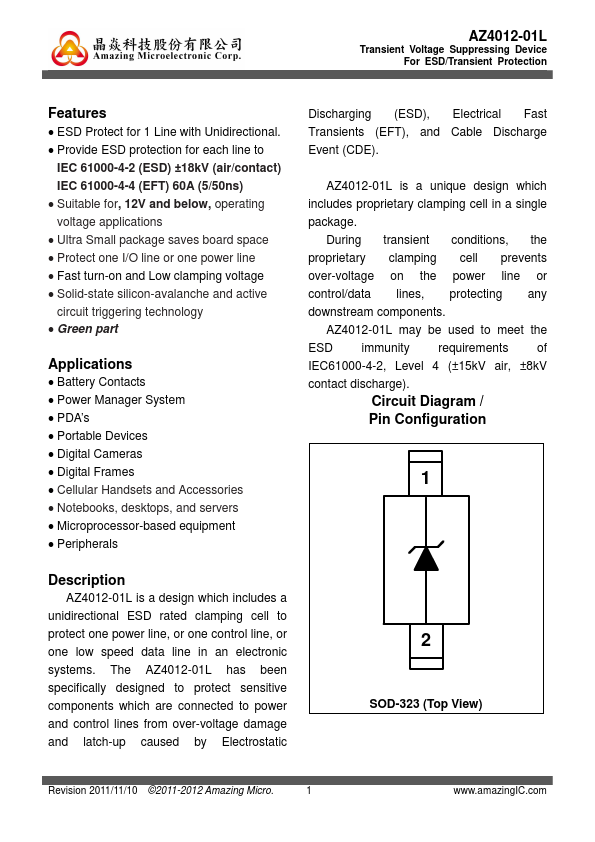

AZ4012-01L
Features
ESD Protect for 1 Line with Unidirectional. Provide ESD protection for each line to IEC 61000-4-2 (ESD) ±18k V (air/contact) IEC 61000-4-4 (EFT) 60A (5/50ns) Suitable for, 12V and below, operating voltage applications Ultra Small package saves board space Protect one I/O line or one power line Fast turn-on and Low clamping voltage Solid-state silicon-avalanche and active circuit triggering technology Green part
Applications
Battery Contacts Power Manager System PDA’s Portable Devices Digital Cameras Digital Frames Cellular Handsets and Accessories Notebooks, desktops, and servers Microprocessor-based equipment Peripherals
Discharging (ESD), Electrical Fast Transients (EFT), and Cable Discharge Event (CDE).
AZ4012-01L is a unique design which includes proprietary clamping cell in a single package.
During transient conditions, the proprietary clamping cell prevents over-voltage on the power line or control/data lines, protecting any downstream ponents.
AZ4012-01L may be used to...
