AZ7709 - SUBMINIATURE POWER RELAY

Features

  • 4 kV dielectric strength.
  • Proof tracking index (PTI/CTI) 250.
  • 5 Amp switching capability (version “T” 10 Amp).
  • Epoxy sealed version available.
  • Class F insulation available.
  • UL, CUR file E365652.
  • TUV B140171811019.

📥 Download Datasheet

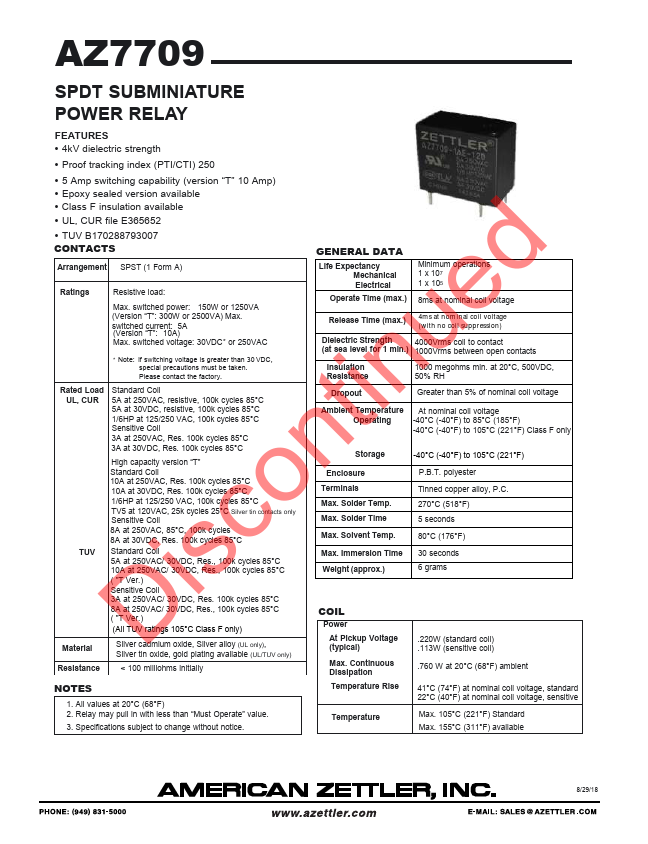

Datasheet preview – AZ7709

Datasheet Details

Part number AZ7709
Manufacturer American Zettler
File Size 593.66 KB
Description SUBMINIATURE POWER RELAY
Datasheet download datasheet AZ7709 Datasheet

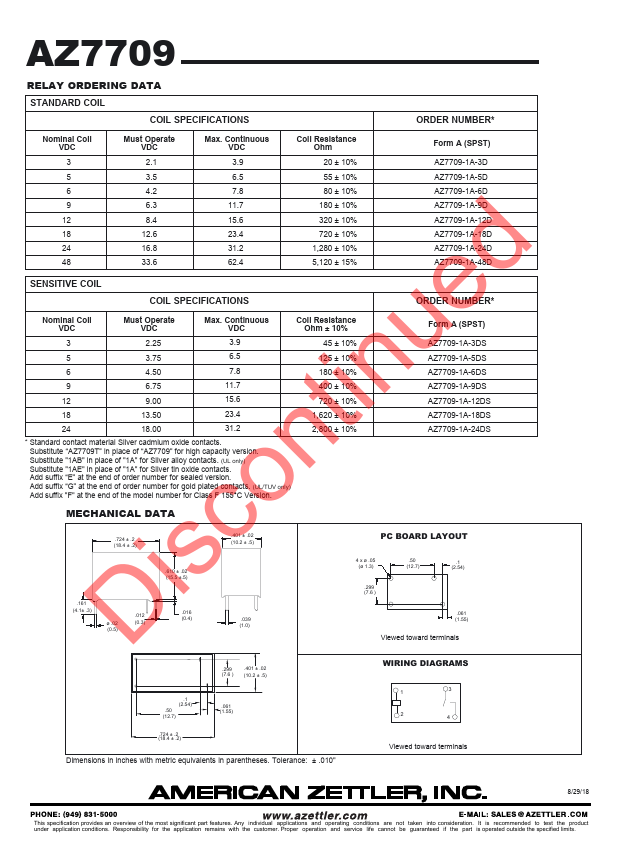

Additional preview pages of the AZ7709 datasheet.

📁 Similar Datasheet

  • AZ7023R - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7023Z - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7025R - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7025Z - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7027R - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7027Z - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7029R - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7029Z - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7031R - VOLTAGE DETECTOR (BCD Semiconductor)
  • AZ7031Z - VOLTAGE DETECTOR (BCD Semiconductor)
Other Datasheets by American Zettler
  • AZ7705 - SUBMINIATURE POWER RELAY
  • AZ732 - MINIATURE POWER RELAY
  • AZ733 - DPDT MINIATURE POWER RELAY
  • AZ7335 - MINIATURE POWER RELAY
  • AZ733W - DPST MINIATURE POWER RELAY
  • AZ733WC - MINIATURE POWER RELAY
  • AZ734 - DPST MINIATURE POWER RELAY
  • AZ7555 - MINIATURE POWER RELAY

Full PDF Text Transcription

Click to expand full text
AZ7709 SPST SUBMINIATURE POWER RELAY FEATURES • 4 kV dielectric strength • Proof tracking index (PTI/CTI) 250 • 5 Amp switching capability (version “T” 10 Amp) • Epoxy sealed version available • Class F insulation available • UL, CUR file E365652 • TUV B140171811019 CONTACTS GENERAL DATA Arrangement Ratings Rated Load UL, CUR TÜV SPST (1 Form A) Resistive load: Max. switched power: 150 W or 1250 VA (Version “T”: 300 W or 2500 VA) Max. switched current: 5 A (Version “T”: 10 A) Max. switched voltage: 30* VDC or 250 VAC *Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Standard Coil 5 A at 250 VAC, Res., 100k cycles, 85°C 5 A at 30 VDC, Res.
