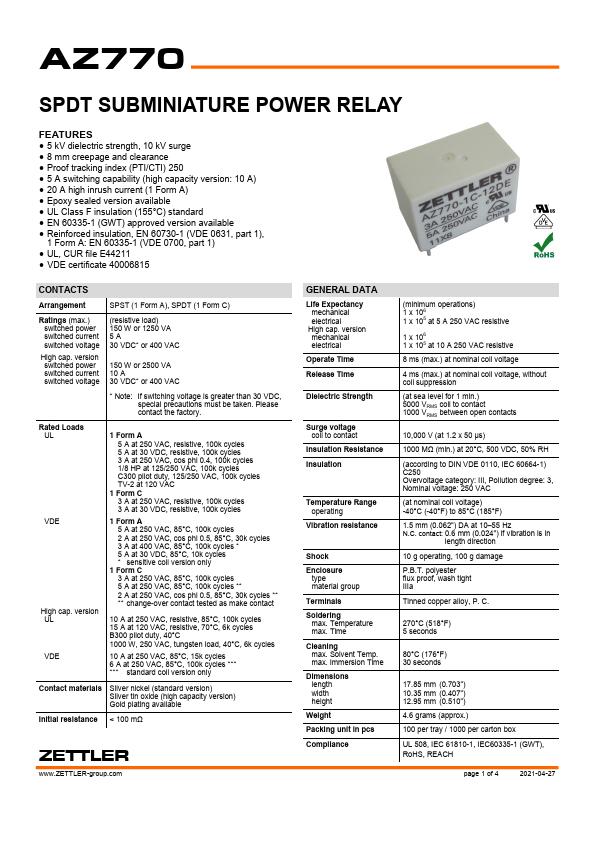

Datasheet Summary
SPDT SUBMINIATURE POWER RELAY
Features
- 5 kV dielectric strength, 10 kV surge
- 8 mm creepage and clearance
- Proof tracking index (PTI/CTI) 250
- 5 A switching capability (high capacity version: 10 A)
- 20 A high inrush current (1 Form A)
- Epoxy sealed version available
- UL Class F insulation (155°C) standard
- EN 60335-1 (GWT) approved version available
- Reinforced insulation, EN 60730-1 (VDE 0631, part 1),
1 Form A: EN 60335-1 (VDE 0700, part 1)
- UL, CUR file E44211
- VDE certificate 40006815
CONTACTS
Arrangement
SPST (1 Form A), SPDT (1 Form C)
Ratings (max.) switched power switched current switched voltage
High cap. version switched power switched current switched...
