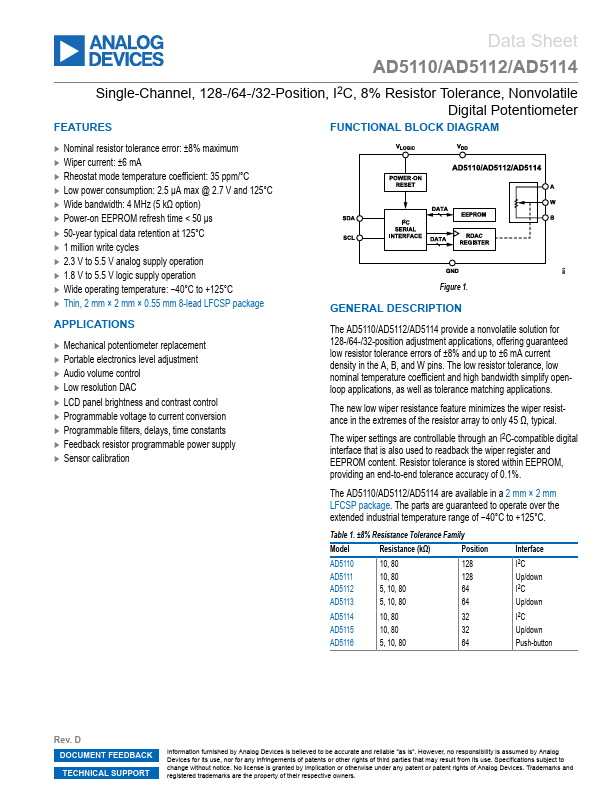

Datasheet Summary
Data Sheet
AD5110/AD5112/AD5114
Single-Channel, 128-/64-/32-Position, I2C, 8% Resistor Tolerance, Nonvolatile
Digital Potentiometer
Features
FUNCTIONAL BLOCK DIAGRAM
- Nominal resistor tolerance error: ±8% maximum
- Wiper current: ±6 mA
- Rheostat mode temperature coefficient: 35 ppm/°C
- Low power consumption: 2.5 µA max @ 2.7 V and 125°C
- Wide bandwidth: 4 MHz (5 kΩ option)
- Power-on EEPROM refresh time < 50 μs
- 50-year typical data retention at 125°C
- 1 million write cycles
- 2.3 V to 5.5 V analog supply operation
- 1.8 V to 5.5 V logic supply operation
- Wide operating temperature:
- 40°C to +125°C
- Thin, 2 mm × 2 mm × 0.55 mm 8-lead LFCSP package
APPLICATIONS
- Mechanical...
